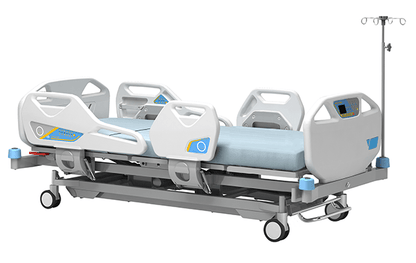

- Product Name: SURI ICU Bed A (Weighing Scale and Cardiac Position)
- Model Number: RMCJH381A
- Dimensions: L2277xW1099xH460-800±10mm
- Material: Cold Rolled Steel, HDPE
Product Material
- Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating.
- The Bed platform consist of four foldable sections, carbon steel folding plate frame.
- Detachable HDPE bed headboard and footboard, four corner bumper is for bed protective.
- Four-section HDPE side rails operated by gas spring.
- Four corner bumpers are for bed protective.
- The third side rails is made of premium quality cold rolled steel with electrostatic powder coating, which is rotated and lockable (Optional).
Product Parameters
- Bed Platform: 1980x900mm
- Backrest: 0-70°±5°
- Legrest: 0-40°±5
- Height Adjustment: 460-800±10mm
- Trendelenburg and Revers Trendelenburg: 0-12°±3°
- Lateral Lilt: 0-30 °
- Brakes System: Central Brake
- Sticker Color: Royal Blue
- Motors: 4 Motors
- Control Panel: Nurse control/ Remote control
Product Feature
- Backrest 0-70°±5°, Leg rest 0-40°±5°, Height adjustment: 460-800±10mm, Trendelenburg and Revers Trendelenburg 0-12°±3°, Auto-contour, Calf Raising, Weighing scale, One-button cardiac position, One-button backrest adjustment 30°, One-button reset to horizontal position, One-Button inspection Position, One-Button Sleeping Position, One-Button Mobilisation Position, One-Button Rescue Position.
- Four motors, high quality and noise-free, there are built-in control buttons on the backrest side rails and LED screen nurse control on the bed footboardboard, with patient lock button.
- Multi-function digital weighing system. The digital display is built in on the control panel of bed footboardboard. The measuring weight of 0-180 kg can be measured and the weighing accuracy is 0.1kg, which can be measured continuously and display the patient’s weight in real time.
- Manual dual side CPR on the backrest is to make the whole bed surface flatted.
- Leaving alarm: the patient left or part of the body to leave the bed, bed will alarm in time.
- Angle indicators are on the both side of backrest side rails.
- Bed light under the bed can automatically detect light changes and provide warm light in the dark environment.
Frequently Asked Questions
1. What are the key features and weighing scale accuracy of the SURI ICU Bed A?
The SURI ICU Bed A, model RMCJH381A, is a sophisticated medical platform equipped with a multi-function digital weighing system integrated directly into the footboard’s LED control panel. This system provides high-precision monitoring with a measuring range of 0 to 180 kg and an accuracy of 0.1 kg, allowing healthcare providers to view the patient’s weight in real time without any physical disturbance. Beyond its weighing capabilities, the bed features a four-motor system that facilitates a wide range of positions, including a one-button cardiac position, Trendelenburg adjustments, and a specialized lateral tilt of up to 30 degrees for advanced patient care.
2. How does the SURI RMCJH381A ICU bed ensure patient safety with its alarm and lighting systems?
Safety is a primary design focus for the SURI RMCJH381A, which incorporates a specialized "leaving alarm" that alerts nursing staff immediately if a patient attempts to exit the bed or if a part of their body moves out of a safe zone. To further prevent falls and accidents in low-light environments, the bed is equipped with an intelligent under-bed light that automatically detects light changes and provides warm illumination. Additionally, the bed features four-section HDPE side rails with built-in angle indicators and a patient lock button on the nurse control panel to prevent unauthorized or accidental adjustments to the bed's position.
3. What materials are used in the SURI ICU Bed A to guarantee durability and hygiene?
The construction of the SURI ICU Bed A utilizes premium industrial-grade materials designed for the rigorous environment of an intensive care unit. The bed platform, structure, and legs are manufactured from premium cold-rolled steel finished with an electrostatic powder coating to prevent corrosion and facilitate deep cleaning. For impact resistance and hygiene, the bed features detachable head and footboards made from high-density polyethylene (HDPE), complemented by four corner bumpers that protect the bed and hospital walls from damage during transport.
4. Can the SURI RMCJH381A bed be manually adjusted during emergency CPR situations?
Yes, the SURI RMCJH381A is designed for critical emergency response by including a manual dual-side CPR release handle located on the backrest. This feature allows medical staff to instantly bypass the electric motors and flatten the entire bed surface manually, ensuring a firm and level platform for resuscitation procedures. This manual override is essential for life-saving situations where the time required for electronic repositioning might be too long or if the facility experiences a temporary power interruption.
5. What are the dimensions and movement ranges for the SURI ICU Bed A cardiac position model?
The SURI ICU Bed A has an overall dimension of L2277 by W1099 mm, with a height adjustment range of 460 mm to 800 mm to accommodate various caregiving heights. The bed platform itself measures 1980 by 900 mm and offers extensive articulation, including a backrest that tilts from 0 to 70 degrees and a leg rest that adjusts from 0 to 40 degrees. For specialized clinical needs, the bed provides Trendelenburg and Reverse Trendelenburg positions up to 12 degrees and features one-button presets for inspection, mobilization, sleeping, and rescue positions to streamline clinical workflows.
