- Product Name: CONTOUR-EF (Three Functions Electric)
- Model Number: RMCJH271B
- Dimensions: L2250×W1060×H450-750mm
- Function: Three Functions
- Material: Cold Rolled Steel, HDPE
Product Material
- Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating.
- The Bed platform consist of four foldable sections, stamping frame.
- Detachable ‘Smile face’ HDPE bed headboard and footboard.
- Four-section ‘Smile face’ HDPE side rails operated by gas spring.
Product Parameters
- Bed Platform: 1980x900mm
- Backrest: 0-70°±5°
- Legrest: 0-40°±5
- Height Adjustment: 460-750±10mm
- Brakes System: Central Brake
- Sticker Color: Wood Grain,Royal Blue
- Motors: 3 Motors
- Control Panel: Remote Control
Product Feature
- Backrest adjustment:0-70°±5°, Legrest adjustment: 0-40°±5°, Height adjustment: 460-750±10mm, Auto-contour.
- Backrest radiolucent board and X-ray cassette board(optional function).
- Three motors, high quality and noise-free, with remote control.
- 4Angle indicators on backrest side rails.
- The four corners of the bed body have orthopedic traction frame holes, which can be used for the clinical use of orthopedics when needed (Optional).
- The detachable bassinet is specially design for taking care of newborn baby, with 360°visibility (Optional).
- Clear acrylic head card for patient name display.
- Four infusion holes, four drainage hooks around the bed.
- Four 125mm diameter castors with central brake.
Product Introduction

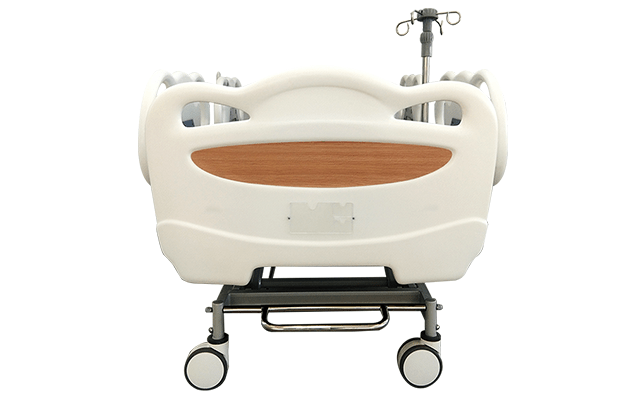

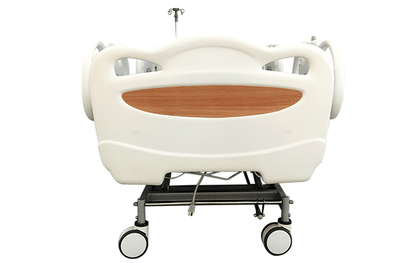

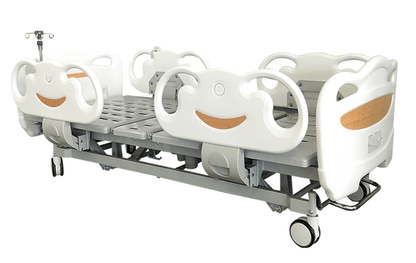

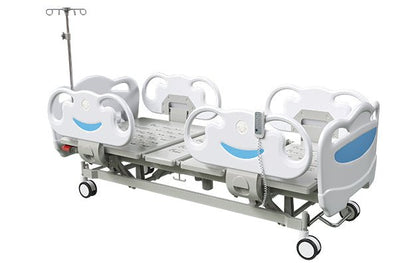

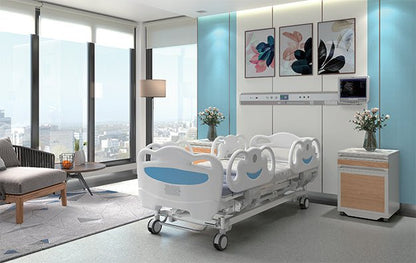

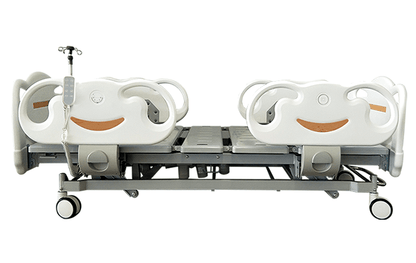

Product Display
Product Detail Display
