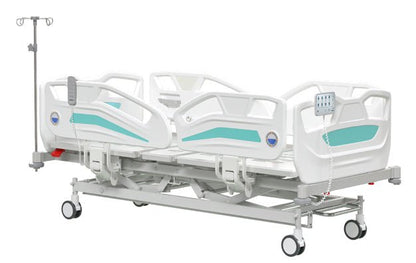

- Product Name: SPECTRA Electric Bed C (External control)
- Model Number: RMCJH251C3
- Dimensions: L2240xW1060xH490-790±10mm
- Material: Cold Rolled Steel, HDPE
Product Material
- Bed platform, structure and leg are all made of premium cold-rolled steel with electrostatic powder coating.
- The Bed platform consists of four foldable sections, a stamping frame.
- Detachable HDPE bed headboard and footboard, four corner bumpers are for bed protective.
- Four-section full-length protection HDPE side rails operated by gas spring.
Product Parameters
- Bed Platform: 1980x900mm
- Backrest: 0-70°±5°
- Legrest: 0-40°±5
- Height Adjustment: 490-790±10mm
- Trendelenburg and Revers Trendelenburg: 0-12°±3°
- Brakes System: Central Brake
- Sticker Color: Wood Grain, Lake Blue
- Motors: 4 Motors
- Control Panel: External control / Remote Control
Product Feature
- Backrest 0-70°±5°, Leg rest 0-40°±5°, Height adjustment: 490-790±10mm, Trendelenburg and Revers Trendelenburg 0-12°±3°, Auto-contour, Calf Raising, One-button cardiac position.
- Four motors, high quality and noise-free, there are Remote control panel on the backrest side rails and an External control panel on the bed footboard, with a patient lock.
- Manual CPR is to make the whole bed surface flatted.
- Electric CPR is to make the backrest board flatted quickly.
- Backrest radiolucent board and X-ray cassette(optional function).
- Auto regression reduces the abdominal pressure of the patient.
- Blue liquid angle indicators on backrest and legrest side rails.
- Clear acrylic bedside card for patient name display, Four infusion holes, two drainage hooks around the bed.
- Four 125mm diameter castors with central brake.
- The length of the bed can be extended by 15cm (optional function).
- Weighing scale system, accuracy is 10g (optional function).
Frequently Asked Questions
What are the primary positioning features and adjustment ranges of the SPECTRA Electric Bed C?
The SPECTRA Electric Bed C offers comprehensive positioning options designed for patient comfort and clinical efficiency. Users can adjust the backrest from 0 to 70 degrees and the leg rest from 0 to 40 degrees, while the overall bed height can be modified between 490mm and 790mm to facilitate easy patient transfers. Additionally, the bed supports Trendelenburg and Reverse Trendelenburg positions up to 12 degrees and includes specialized automated settings such as auto-contour, calf raising, and a one-button cardiac position for advanced therapeutic care.
How does the SPECTRA Electric Bed C handle emergency situations like CPR?
To ensure patient safety during critical medical emergencies, the SPECTRA Electric Bed C Model RMCJH251C3 is equipped with both manual and electric CPR functions. The electric CPR feature allows the backrest board to be flattened quickly through the control system, while the manual CPR mechanism ensures the entire bed surface can be leveled instantly even in the event of a power failure or motor issue. This dual-system approach ensures that medical staff can perform life-saving procedures without any mechanical delay.
What types of control systems and motor technology are used in the SPECTRA RMCJH251C3 hospital bed?
This model features a sophisticated multi-point control system powered by four high-quality, noise-free motors to ensure a quiet environment for patient recovery. Caregivers and patients can manage bed functions using the external control panel located on the bed footboard or the remote control panels integrated into the backrest side rails. To prevent accidental adjustments or to ensure patient safety, the system includes a dedicated patient lock feature that allows staff to disable specific bed movements as needed.
What materials and safety components are used in the construction of the SPECTRA Electric Bed C?
The SPECTRA Electric Bed C is engineered for durability and hygiene, utilizing premium cold-rolled steel with an electrostatic powder coating for the bed platform, frame, and legs. It features detachable HDPE (High-Density Polyethylene) headboards and footboards alongside four-section full-length HDPE side rails that operate smoothly via a gas spring mechanism. For structural protection and mobility, the bed includes four corner bumpers to prevent impact damage and a central braking system with 125mm diameter castors for secure and stable positioning within a facility.
Can the SPECTRA Electric Bed C be customized with weighing scales or X-ray capabilities?
Yes, the SPECTRA RMCJH251C3 offers several optional upgrades to meet specific clinical requirements, including a high-accuracy integrated weighing scale system with a precision of 10g. Medical facilities can also choose to add a backrest radiolucent board and an X-ray cassette holder to facilitate in-bed imaging without moving the patient. Other available customizations include a bed extension feature that increases the total length by 15cm for taller patients, complementing standard features like auto-regression which reduces abdominal pressure during backrest adjustments.
