- Product Name: SURI Electric Bed E
- Model Number: RMCJH381E
- Dimensions: L2240xW1050xH450-750±10mm
- Material: Cold Rolled Steel, HDPE
Product Material
- Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating.
- The Bed platform consist of four foldable sections, stamping frame.
- Detachable HDPE bed headboard and footboard.
- Four-section HDPE side rails operated by gas spring.
- The third side rails is made of premium quality cold rolled steel with electrostatic powder coating, which is rotated and lockable(Optional)
Product Parameters
- Bed Platform: 1980x900mm
- Backrest: 0-70°±5°
- Legrest: 0-40°±5
- Height adjustment: 450-750±10mm
- Brakes System: Central Brake
- Sticker Color: Wood Grain\ Royal Blue
- Motors: 3 Motors
- Control Panel: Remote Control
Product Feature

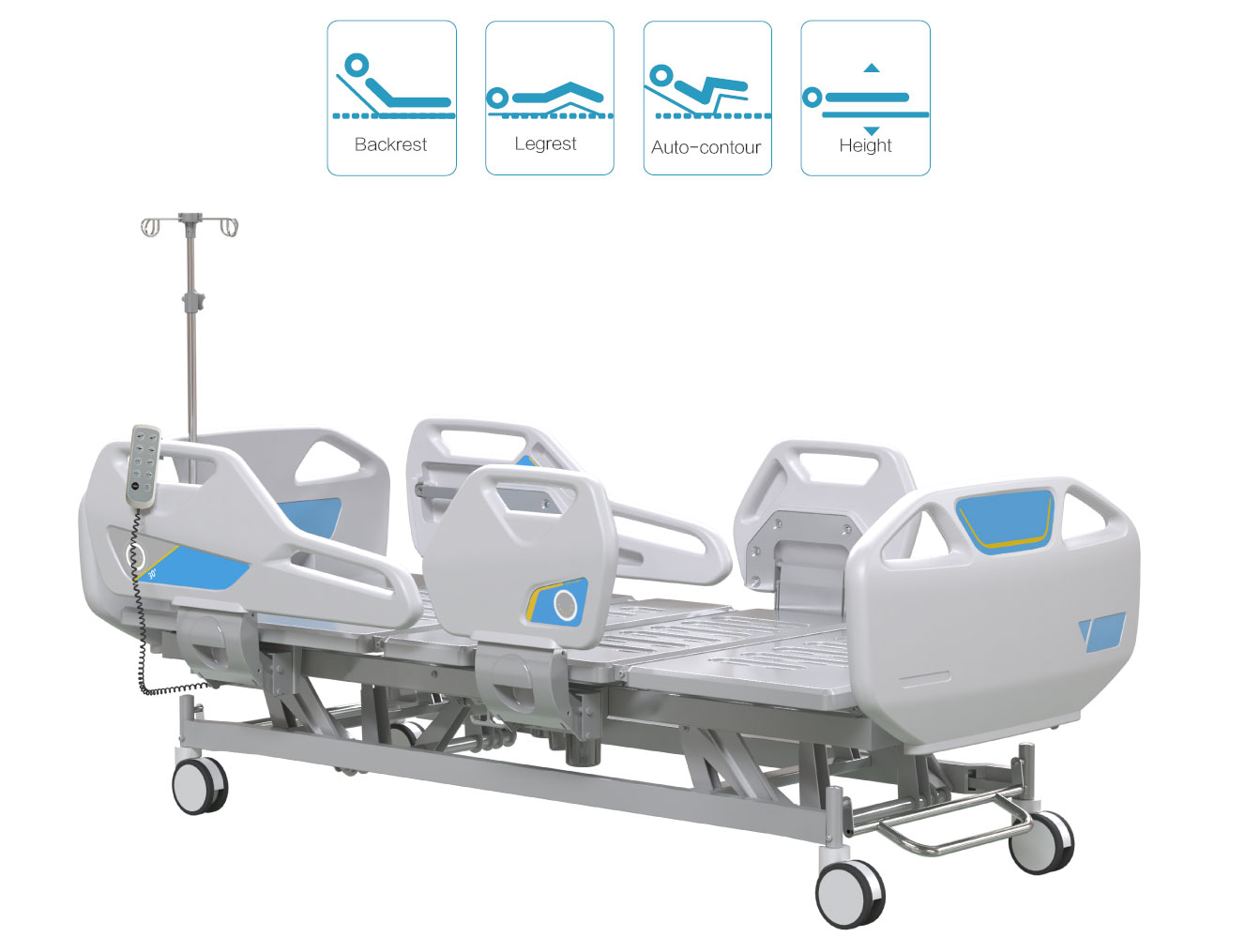

- Backrest 0-70°±5°, Leg rest 0-40°±5°, Height adjustment: 450-750±10mm, Auto-contour.
- Three motors, high quality and noise-free, with remote control.
- Backrest radiolucent board and X-ray cassette(optional function).
- Angle indicators are on the both side of backrest side rails.
- Acrylic hedside card for patient name display, Four infusion holes, four drainage hooks around the bed.
- Four 125mm diameter castors with central brake.
- The four corners of the bed body have orthopedic traction frame holes, which can be used for the clinical use of orthopedics when needed (Optional).
Frequently Asked Questions
What are the dimensions and platform size of the SURI Electric Bed E RMCJH381E?
The SURI Electric Bed E features overall external dimensions of L2240mm x W1050mm, with a height that can be adjusted between 450mm and 750mm. The internal bed platform, which consists of a four-section foldable stamping frame, measures 1980mm x 900mm to accommodate standard medical mattresses and ensure patient comfort.
What materials are used in the construction of the SURI Electric Bed E?
This electric medical bed is engineered for durability using premium cold-rolled steel for the bed platform, structure, and legs, all of which are finished with an electrostatic powder coating for corrosion resistance. The bed also incorporates high-density polyethylene (HDPE) for the detachable headboard, footboard, and the four-section side rails, providing a balance of structural strength and easy-to-clean surfaces.
How many motors does the SURI Electric Bed E have and how are they controlled?
The SURI Electric Bed E is equipped with three high-quality, noise-free motors designed to provide smooth and silent transitions for the patient. These motors are operated via a wired remote control, allowing caregivers or patients to easily adjust the backrest, leg rest, and overall bed height to achieve the desired ergonomic position or auto-contour setting.
What is the adjustable range for the backrest and leg rest on the SURI Electric Bed E?
Designed for versatile clinical positioning, the SURI Electric Bed E offers a backrest adjustment range of 0-70° (±5°) and a leg rest adjustment range of 0-40° (±5°). These movements, combined with the adjustable height range of 450mm to 750mm, allow for optimal patient care, improved circulation, and easier ingress or egress from the bed.
Does the SURI Electric Bed E support X-ray imaging and orthopedic traction?
The SURI Electric Bed E is designed with clinical flexibility in mind and offers optional functions such as a radiolucent backrest board and an X-ray cassette holder for bedside diagnostics. Additionally, the bed frame features four dedicated orthopedic traction frame holes at each corner, which can be utilized for specialized clinical orthopedic treatments when necessary.
Product Introduction

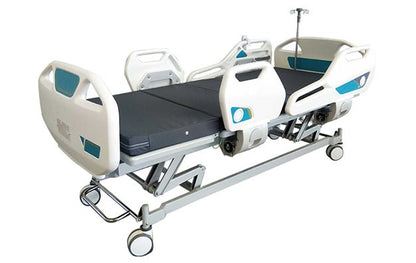

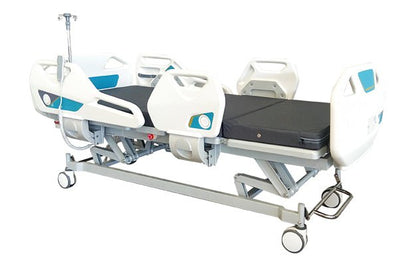

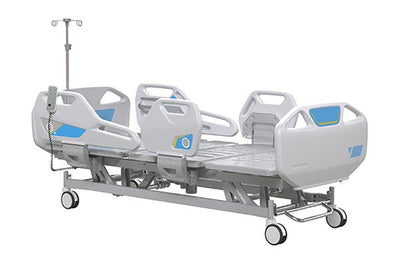

Product Display

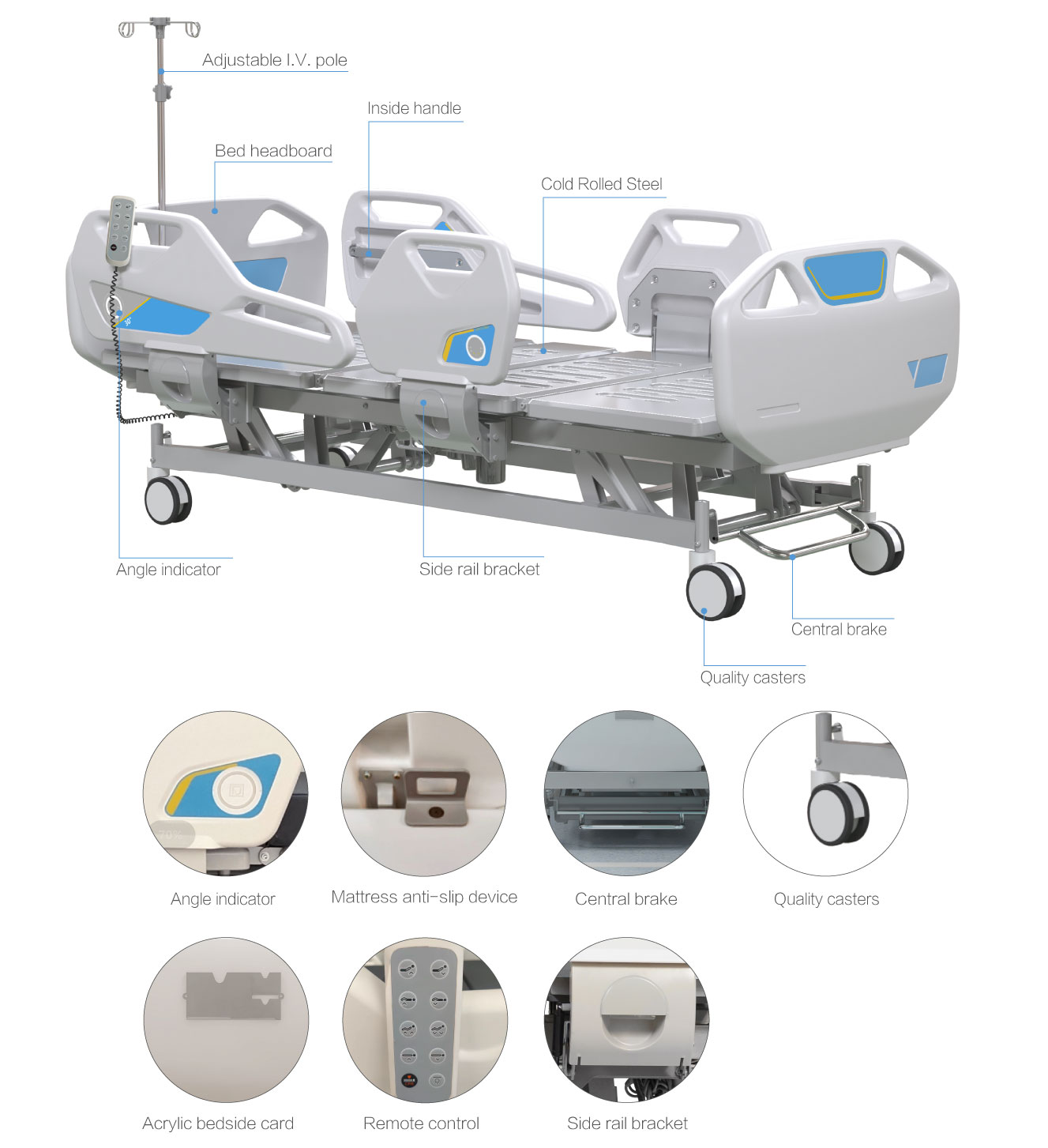

Product Detail Display
