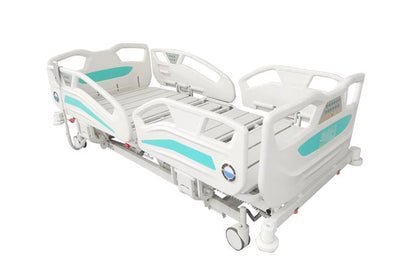

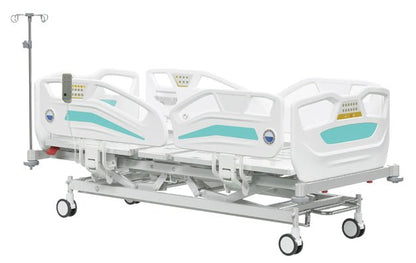

- Product Name: SPECTRA Electric Bed C (Built-in Button)
- Model Number: RMCJH251C1/ RMCJH251C2
- Dimensions: L2240xW1060xH490-790±10mm
- Material: Cold Rolled Steel, HDPE
Product Material
- Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating.
- The Bed platform consist of four foldable sections, stamping frame (RMCJH251C1).
- The Bed platform is combined by PE plastic pillar, which is easy to clean and detachable (RMCJH251C2).
- Detachable HDPE bed headboard and footboard.
- Four-section HDPE side rails operated by gas spring.
- Four corner bumpers are for bed protective.
Product Parameters
- Bed Platform: 1980x900mm
- Backrest: 0-70°±5°
- Legrest: 0-40°±5
- Height Adjustment: 490-790±10mm
- Trendelenburg and Revers Trendelenburg: 0-12°±3°
- Brakes System: Central Brake
- Sticker Color: Wood Grain, Lake Blue
- Motors: 4 Motors
- Control Panel: Nurse Control/ Remote Control
Product Feature
- Backrest 0-70°±5°, Leg rest 0-40°±5°, Height adjustment: 490-790±10mm, Trendelenburg and Revers Trendelenburg 0-12°±3°, Auto-contour, Calf Raising, One-button cardiac position.
- Four motors, high quality and noise-free, there are built-in control buttons on the backrest side rails and nurse control on the bed footboard, with patient lock.
- Manual CPR is to make the whole bed surface flatted.
- Electric CPR is to make the backrest board flatted quickly.
- Backrest radiolucent board and X-ray cassette(optional function).
- Auto regression reduces the abdominal pressure of the patient.
- Blue liquid angle indicators are on backrest and legrest side rails.
- Clear acrylic bedside card for patient name display, Four infusion holes, two drainage hooks around the bed.
- Four 125mm diameter castors with central brake.
- The length of the bed can be extended by 15cm (optional function).
- Weighing scale system, accuracy is 10g (optional function).
Frequently Asked Questions
1. What are the dimensions and adjustable height range of the SPECTRA Electric Bed C?
The SPECTRA Electric Bed C (Model RMCJH251C1/C2) is designed with overall dimensions of L2240 by W1060mm, providing a standard footprint for hospital environments. The bed features a versatile height adjustment range, allowing the platform to move from a minimum height of 490mm to a maximum of 790mm, with a variance of plus or minus 10mm. The internal bed platform itself measures 1980 by 900mm, ensuring ample space for patient comfort while maintaining a compact enough profile for easy maneuverability through clinic hallways.
2. What adjustable positions and motor functions does the SPECTRA RMCJH251C offer?
This electric hospital bed is powered by four high-quality, noise-free motors that facilitate several therapeutic positions. Users can adjust the backrest from 0 to 70 degrees and the legrest from 0 to 40 degrees to assist with patient circulation and comfort. Additionally, the bed supports Trendelenburg and Reverse Trendelenburg tilting at 12-degree angles. Specialized functions include an auto-contour setting, calf raising, and a dedicated one-button cardiac position, all of which are accessible via built-in rail buttons or the nurse control panel located at the footboard.
3. How do the manual and electric CPR functions work on the SPECTRA Electric Bed?
The SPECTRA Electric Bed C is equipped with dual CPR emergency features to ensure patient safety during resuscitation efforts. The manual CPR function is designed to flatten the entire bed surface immediately using a mechanical release, which is essential during power outages or urgent bedside care. For standard electronic operation, the electric CPR button allows the nursing staff to quickly return the backrest to a flat position. This dual-system approach ensures that the bed is always ready for emergency medical interventions regardless of the situation.
4. What is the difference between the RMCJH251C1 and RMCJH251C2 SPECTRA models?
The primary distinction between the two model numbers lies in the construction of the bed platform. The RMCJH251C1 features a bed platform consisting of four foldable sections with a traditional stamping frame made of premium cold rolled steel. The RMCJH251C2 model utilizes a bed platform combined with PE plastic pillars, which are specifically designed to be easy to clean and detachable for higher sterilization standards. Both models share the same external dimensions and core features, such as the HDPE side rails and the electrostatic powder-coated steel structure.
5. Does the SPECTRA Electric Bed C support X-ray imaging and integrated patient weighing?
While the standard model is highly featured, the SPECTRA Electric Bed C offers several high-end optional upgrades for advanced clinical needs. Facilities can opt for a radiolucent backrest board equipped with an X-ray cassette holder to perform imaging without moving the patient. Furthermore, an integrated weighing scale system is available as an option, providing high-precision monitoring with an accuracy of 10g. Other customizable features include a 15cm bed length extension to accommodate taller patients and a choice between wood grain or lake blue aesthetic stickers.
