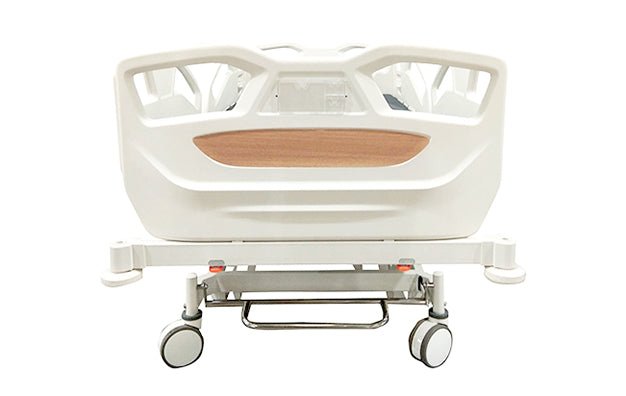

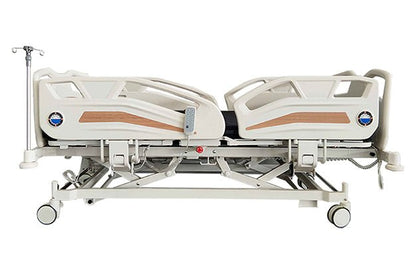

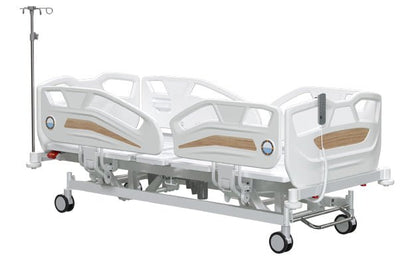

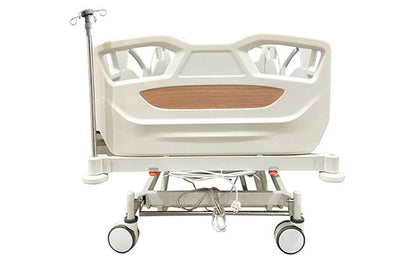

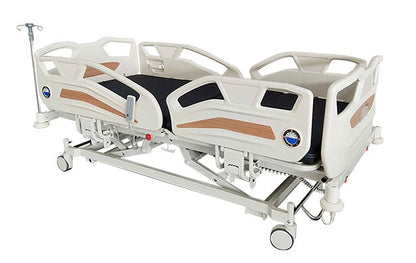

- Product Name: SPECTRA Electric Bed B
- Model Number: RMCJH251B
- Dimensions: L2240×W1060×H460-750±10mm
- Material: Cold Rolled Steel, HDPE
Product Material
- Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating.
- The Bed platform consist of four foldable sections, stamping frame.
- Detachable HDPE bed headboard and footboard, four corner bumpers are for bed protective.
- Four-section full-length protection HDPE side rails operated by gas spring.
Product Parameters
- Bed Platform: 1980x900mm
- Backrest: 0-70°±5°
- Legrest: 0-40°±5
- Height Adjustment: 460-750±10mm
- Brakes System: Central Brake
- Sticker Color: Wood Grain，Lake Blue
- Motors: 3 Motors
- Control Panel: Remote Control
Product Feature
- Backrest 0-70°±5°, Legrest 0-40°±5°, Height adjustment: 460-750±10mm, Auto-contour.
- Three motors, high quality and noise-free, with remote control.
- Backrest radiolucent board and X-ray cassette(optional function).
- Clear acrylic bedside card for patient name display, Four infusion holes, two drainage hooks around the bed.
- Four 125mm diameter castors with central brake.
- The four corners of the bed body have orthopedic traction frame holes, which can be used for the clinical use of orthopedics when needed (Optional).
Frequently Asked Questions
What are the dimensions and platform size of the SPECTRA Electric Bed B?
The SPECTRA Electric Bed B, model RMCJH251B, is designed with overall external dimensions of 2240mm in length and 1060mm in width to accommodate standard clinical spaces. The actual bed platform, where the mattress sits, measures 1980mm by 900mm, providing ample space for patient comfort. Additionally, the bed features a flexible height range, allowing it to be adjusted from a minimum of 460mm to a maximum of 750mm, ensuring ergonomic ease for both patients and healthcare providers during transfers.
What adjustment functions does the SPECTRA RMCJH251B three-motor system provide?
The SPECTRA Electric Bed B utilizes a high-quality, noise-free three-motor system that allows for precise positioning via a remote control. Users can adjust the backrest from 0 to 70 degrees and the legrest from 0 to 40 degrees to promote better circulation and respiratory relief. The system also includes an auto-contour feature that moves the backrest and legrest simultaneously to prevent the patient from sliding toward the foot of the bed, along with a vertical height adjustment range of 460mm to 750mm.
What materials are used in the construction of the SPECTRA Electric Bed B?
The SPECTRA RMCJH251B is built for durability and hygiene, featuring a bed platform, structure, and legs manufactured from premium cold-rolled steel coated with an electrostatic powder finish. For enhanced safety and easy cleaning, the bed is equipped with a detachable headboard and footboard made of High-Density Polyethylene (HDPE). The four-section full-length protection side rails are also made of HDPE and are operated by a smooth gas spring mechanism to ensure patient security.
How does the SPECTRA Electric Bed B ensure patient safety and mobility?
Safety and mobility are prioritized through a central braking system that controls four 125mm diameter castors, allowing the bed to be locked securely in place or moved easily across medical facilities. The bed is designed with four corner bumpers to protect the structure during transport and includes HDPE side rails for fall prevention. For added clinical utility, the bed includes a clear acrylic bedside card for patient identification, four infusion holes for IV poles, and two drainage hooks located around the frame.
Can the SPECTRA Electric Bed B be used for X-ray imaging and orthopedic procedures?
The SPECTRA Electric Bed B offers specialized clinical versatility through optional features tailored for advanced medical care. It can be equipped with a radiolucent backrest board and an X-ray cassette holder, allowing healthcare professionals to perform imaging without moving the patient. Furthermore, the bed frame is designed with integrated orthopedic traction frame holes at all four corners, making it an ideal choice for orthopedic departments that require the installation of traction equipment for patient recovery.
