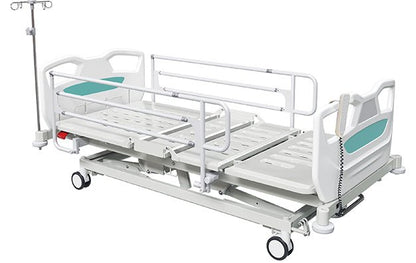

SPECTRA Electric Bed A3

• Product Name: SPECTRA Electric Bed A3
• Model Number: RMCJH251A3
• Dimensions: L2240xW1060xH490-790±10mm
• Material: Cold Rolled Steel, HDPE
• Side Rails: Rotation Side Rails

Product Material

• Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating.
• The Bed platform consists of four foldable sections, a stamping frame.
• Detachable HDPE bed headboard and footboard, four corner bumpers are for bed protective.
• Two-section rotation side rails, made of premium cold rolled steel with electrostatic powder coating.

Product Parameters

• Bed Platform: 1980x900mm
• Backrest: 0-70°±5°
• Legrest: 0-40°±5
• Height Adjustment: 490-790±10mm
• Trendelenburg and Revers Trendelenburg: 0-12°±3°
• Brakes System: Central Brake
• Sticker Color: Wood Grain\ Lake Blue
• Motors: 4 Motors
• Control Panel: Remote Control

Product Feature

• Backrest 0-70°±5°, Leg rest 0-40°±5°, Height adjustment: 490-790±10mm, Trendelenburg and Revers Trendelenburg 0-12°±3°, Auto-contour, Calf Raising.
• Four motors, high quality and noise-free, with remote control.
• Manual CPR is to make the whole bed surface flatted.
• Electric CPR is to make the backrest board flatted quickly.
• Backrest radiolucent board board and X-ray cassette(optional function).
• Auto regression reduce the abdominal pressure of patient.
• Clear acrylic bedside card for patient name display, Four infusion holes, two drainage hooks around the bed.
• Four 125mm diameter castors with central brake.
• The length of the bed can be extended by 15cm (optional function).

Frequently Asked Questions

What are the dimensions of the SPECTRA Electric Bed A3 and can the length be extended?

The SPECTRA Electric Bed A3 (Model RMCJH251A3) has external dimensions of L2240xW1060mm with an adjustable height range between 490mm and 790mm. While the standard bed platform measures 1980x900mm, this model includes an optional extension function that allows the bed to be lengthened by an additional 15cm to accommodate taller patients comfortably.

What adjustable positions and motor features does the SPECTRA RMCJH251A3 medical bed offer?

This electric hospital bed is powered by four high-quality, noise-free motors managed by a remote control system to provide comprehensive positioning. It features a backrest adjustment of 0-70°, a leg rest range of 0-40°, and full height adjustment, while also supporting auto-contour, calf raising, and specialized Trendelenburg and Reverse Trendelenburg tilting between 0-12°.

Does the SPECTRA A3 electric bed include emergency CPR functions for patient safety?

Safety is a primary feature of the SPECTRA A3, as it is equipped with both manual and electric CPR functions. The manual CPR mechanism allows the entire bed surface to be flattened instantly, while the electric CPR function is specifically designed to flatten the backrest board quickly, ensuring medical staff can perform emergency resuscitation procedures without delay.

What materials are used in the construction of the SPECTRA Electric Bed A3?

The SPECTRA Electric Bed A3 is built for durability and hygiene, utilizing premium cold rolled steel with an electrostatic powder coating for the bed platform, structure, and legs. The detachable headboard and footboard, along with the protective corner bumpers, are made from high-density polyethylene (HDPE), while the rotation side rails are also constructed from reinforced cold rolled steel.

What mobility and braking systems are integrated into the SPECTRA RMCJH251A3 model?

To ensure easy transport and stability within a clinical environment, the SPECTRA RMCJH251A3 is equipped with four 125mm diameter castors. These wheels are connected to a central brake system, allowing healthcare providers to secure the bed firmly in place or move it smoothly across different floor surfaces with a single point of control.

Product Introduction

Product Display

Product Detail Display
