- Product Name: SURI ICU Bed C (Built-in Button)
- Model Number: RMCJH381C1/ RMCJH381C2
- Dimensions: L2277xW1099xH460-800±10mm
- Material: Cold Rolled Steel, HDPE
Product Material
- Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating.
- The Bed platform consist of four foldable sections, stamping frame (RMCJH381C1).
- The Bed platform is combined by PE plastic pillar, which is easy to clean and detachable (RMCJH381C2).
- Detachable HDPE bed headboard and footboard.
- Four-section HDPE side rails operated by gas spring.
- Four corner bumpers are for bed protective.
- The third side rails is made of premium quality cold rolled steel with electrostatic powder coating, which is rotated and lockable (Optional).
Product Parameters
- Bed Platform: 1980x900mm
- Backrest: 0-70°±5°
- Legrest: 0-40°±5
- Height Adjustment: 460-800±10mm
- Trendelenburg and Revers Trendelenburg: 0-12°±3°
- Lateral Lilt: 0-30 °
- Brakes System: Central Brake
- Sticker Color: Ice Blue
- Motors: 4 Motors
- Control Panel: Nurse Control / Remote Control
Product Feature

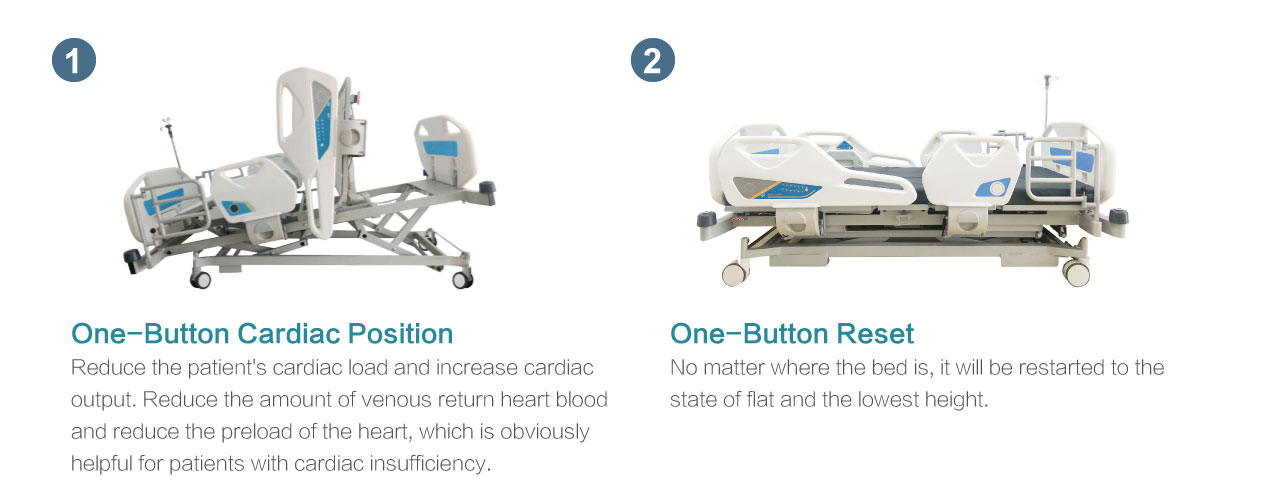

- Backrest 0-70°±5°, Leg rest 0-40°±5°, Height adjustment: 460-800±10mm, Trendelenburg and Revers Trendelenburg 0-12°±3°, Auto-contour, Calf Raising, One-button cardiac position.
- Four motors, high quality and noise-free, there are built-in control buttons on the backrest side rails and nurse control on the bed footboard, with patient lock button.
- Manual CPR is to make the whole bed surface flatted.
- Electric CPR is to make the backrest board flatted quickly.
- Angle indicators are on the both side of backrest side rails.

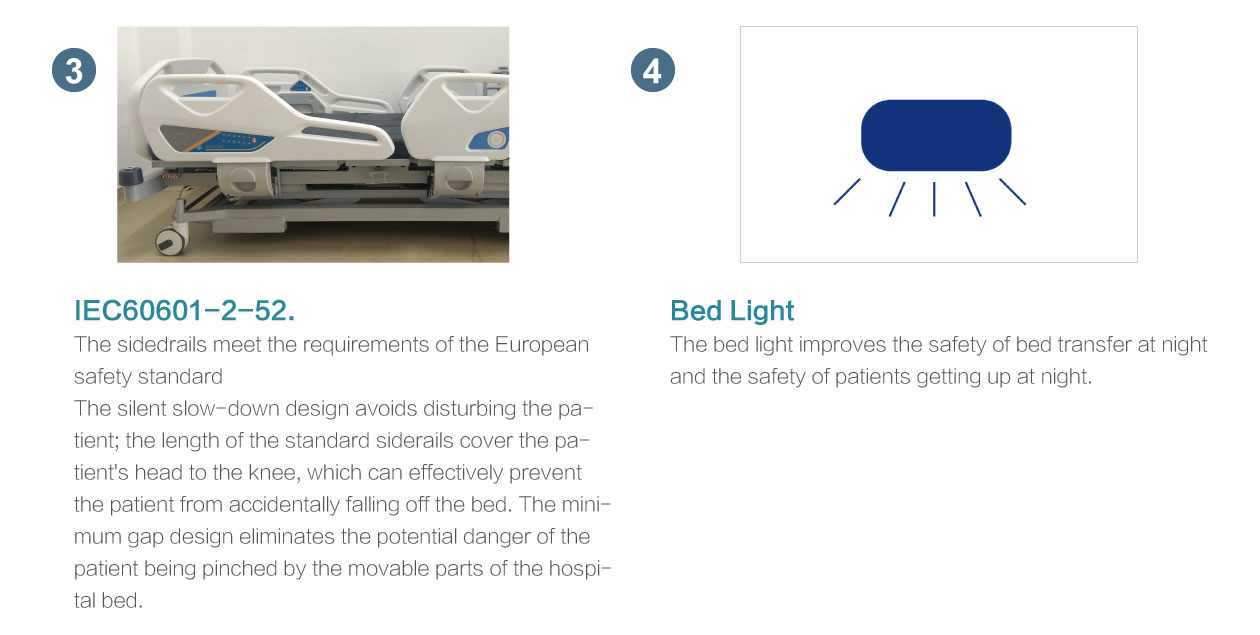

- Bed light under the bed can automatically detect light changes and provide warm light in the dark environment.
- The length of the bed can be extended 15cm (optional function).
- Auto regression reduce the abdominal pressure of patient.
Frequently Asked Questions
What are the main features and functions of a 4-motor electric ICU bed?
A 4-motor electric ICU bed like the SURI RMCJH381C provides comprehensive adjustment options including backrest elevation from 0 to 70 degrees, leg rest positioning up to 40 degrees, and a versatile height range between 460mm and 800mm. These high-quality, noise-free motors also facilitate specialized medical movements such as Trendelenburg and Reverse Trendelenburg positions as well as a 30-degree lateral tilt to assist in patient repositioning and pressure ulcer prevention.
How does the manual and electric CPR function work on medical ICU beds?
The CPR function is a critical safety feature designed to flatten the bed surface instantly during emergency resuscitation. In the SURI ICU Bed C series, the manual CPR allows staff to physically override the motor system to flatten the entire bed surface, while the electric CPR function uses the control system to quickly level the backrest board. These dual systems ensure that medical professionals can transition the patient to a flat, firm surface for chest compressions without delay.
What materials are used in the construction of the SURI RMCJH381C ICU bed?
This ICU bed is engineered using premium cold-rolled steel for the bed platform, structure, and legs, all finished with an electrostatic powder coating for enhanced durability and hygiene. The headboard, footboard, and four-section side rails are made from High-Density Polyethylene (HDPE), which is a robust plastic known for being easy to clean, detachable, and resistant to medical-grade disinfectants.
What are the benefits of lateral tilt and auto-regression in ICU patient care?
Lateral tilt allows the bed to lean up to 30 degrees to either side, which is essential for improving pulmonary drainage and reducing the physical strain on caregivers during patient turning. Auto-regression is a sophisticated feature that automatically moves the bed sections to reduce abdominal pressure and shearing forces on the patient's skin when the backrest is raised, significantly increasing long-term comfort and safety for immobile patients.
Where are the control panels located on the SURI ICU Bed with built-in buttons?
The control interface of the SURI ICU Bed C is designed for both patient accessibility and caregiver security, featuring built-in control buttons directly on the backrest side rails. Additionally, a primary nurse control panel is located on the bed footboard, which includes a patient lock button to prevent unauthorized or accidental adjustments to the bed's position, ensuring a controlled and safe environment.

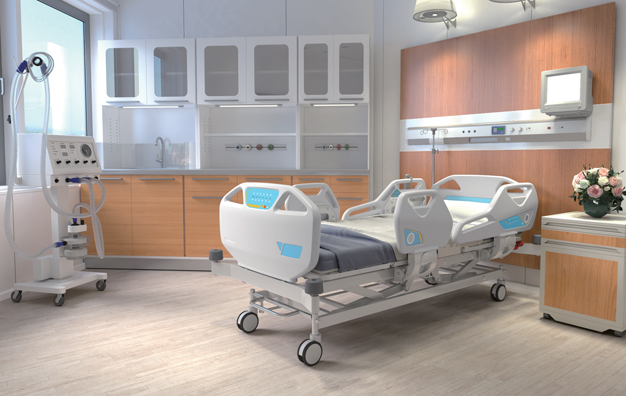

Product Introduction

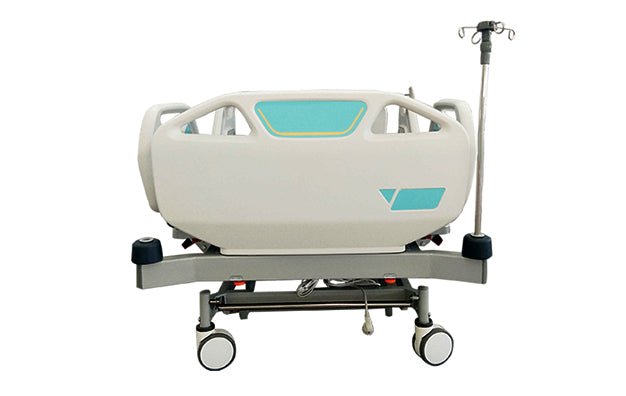

Product Display

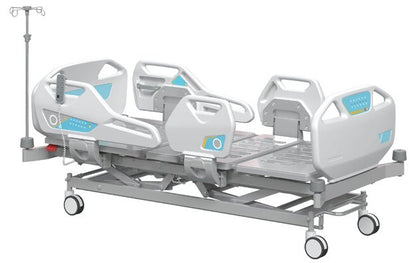

RMCJH381C1

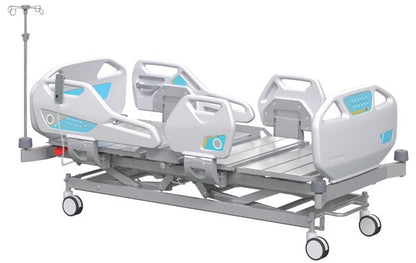

RMCJH381C2

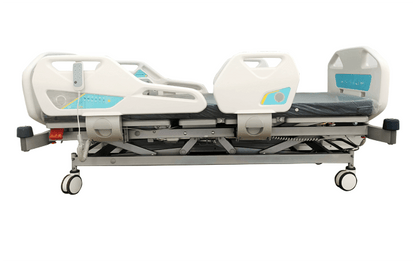

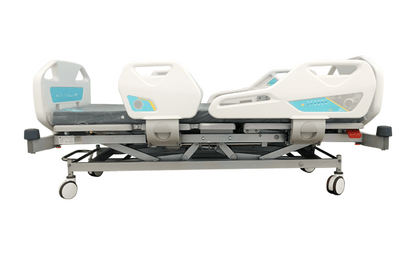

Product Detail Display
