- Product Name: SURI ICU Bed B (Weighing Scale and Lateral Tilt)
- Model Number: RMCJH381B
- Dimensions: L2277xW1099xH460-800±10mm
- Material: Cold Rolled Steel, HDPE
Product Material

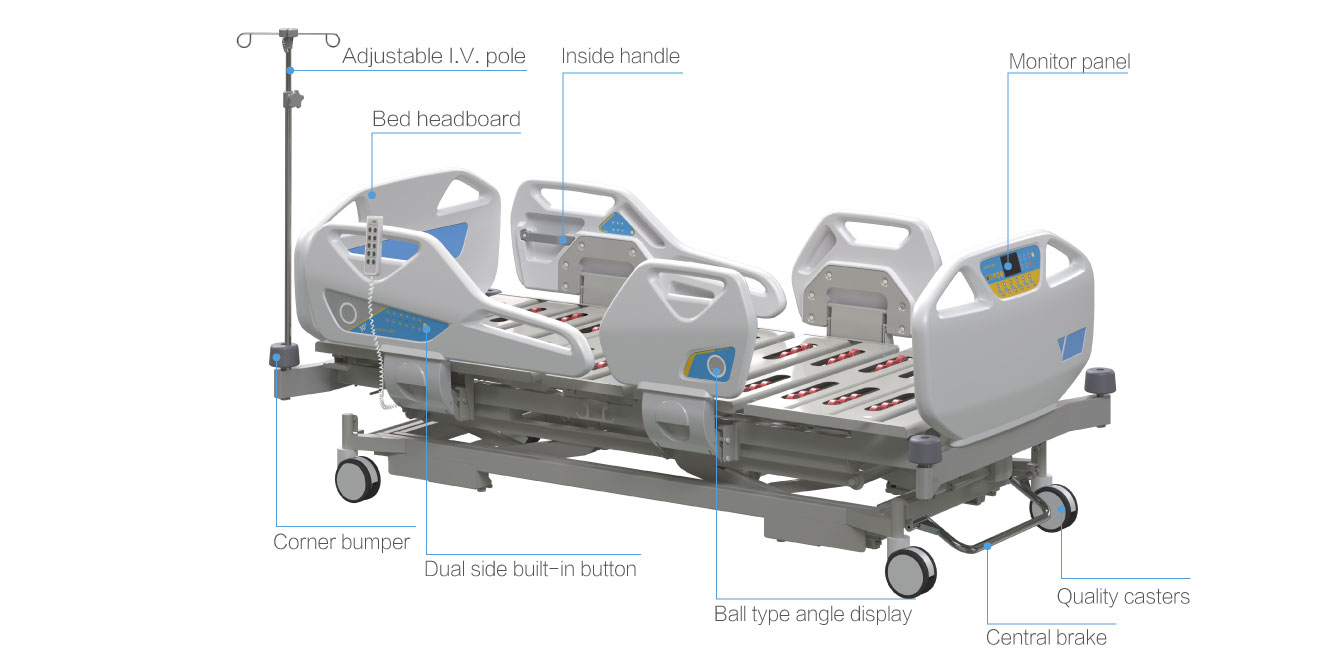

- Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating.
- The Bed platform consist of four foldable sections, stamping frame.
- Detachable HDPE bed headboard and footboard, four corner bumper is for bed protective.
- Four-section HDPE side rails operated by gas spring.
- Four corner bumpers are for bed protective.
- The third side rails is made of premium quality cold rolled steel with electrostatic powder coating, which is rotated and lockable (Optional).
Product Parameters
- Bed Platform: 1980x880mm
- Backrest: 0-70°±5°
- Legrest: 0-40°±5
- Height Adjustment: 460-800±10mm
- Trendelenburg and Revers Trendelenburg: 0-12°±3°
- Lateral Lilt: 0-30 °
- Brakes System: Central Brake
- Sticker Color: Royal Blue
- Motors: 5 Motors
- Control Panel: Nurse Control / Remote Control
Product Feature

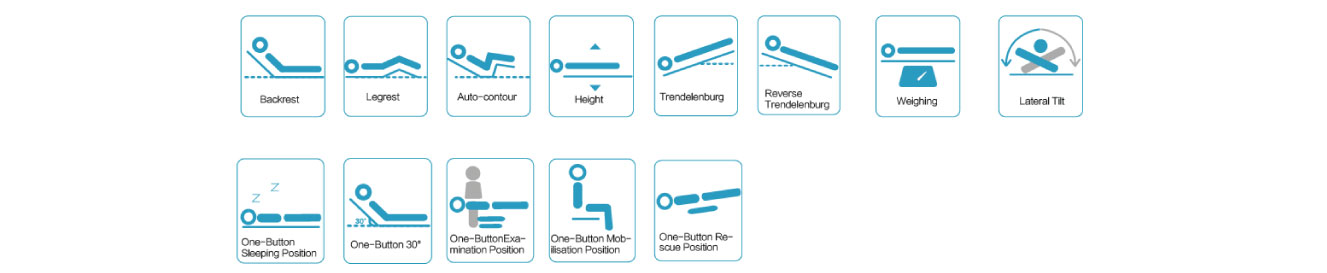

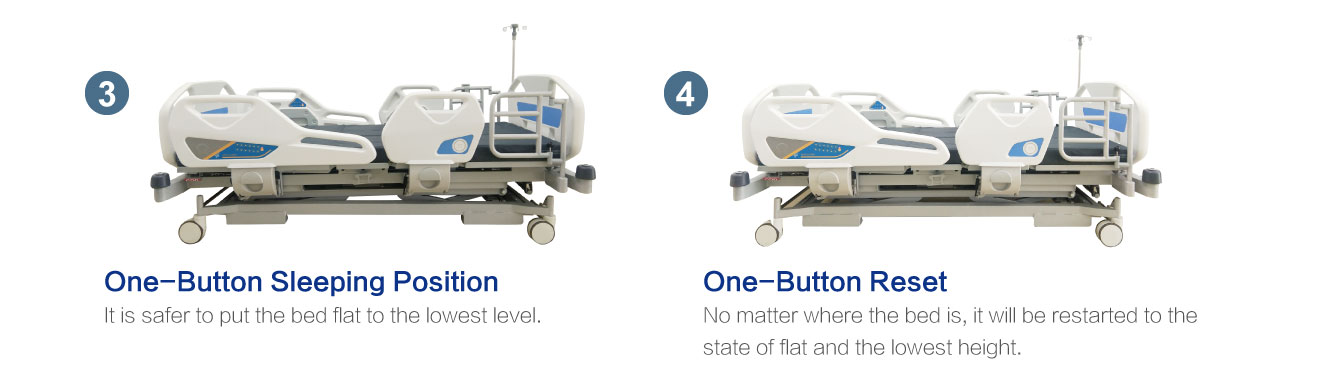

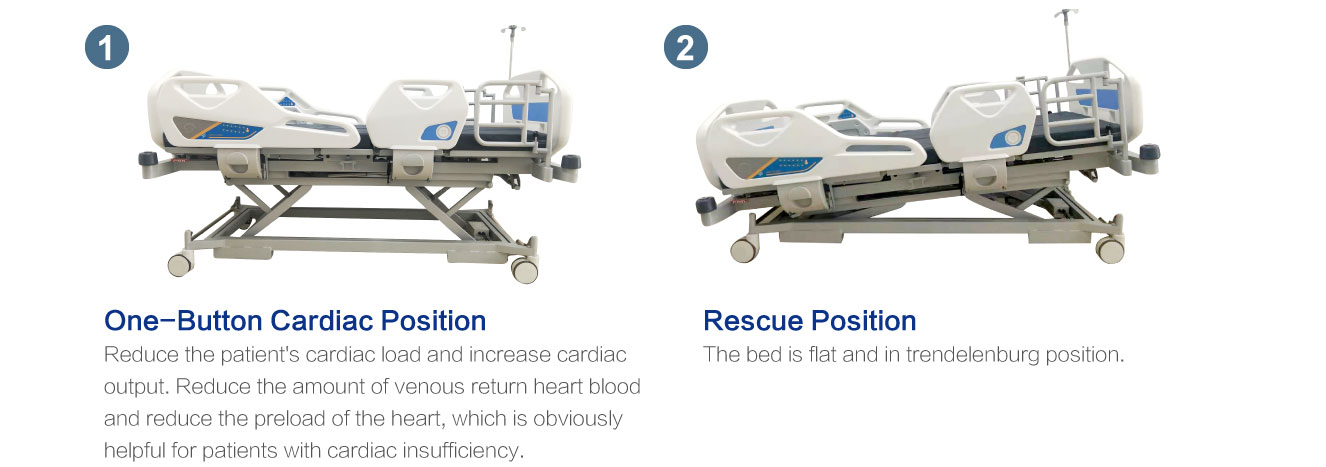

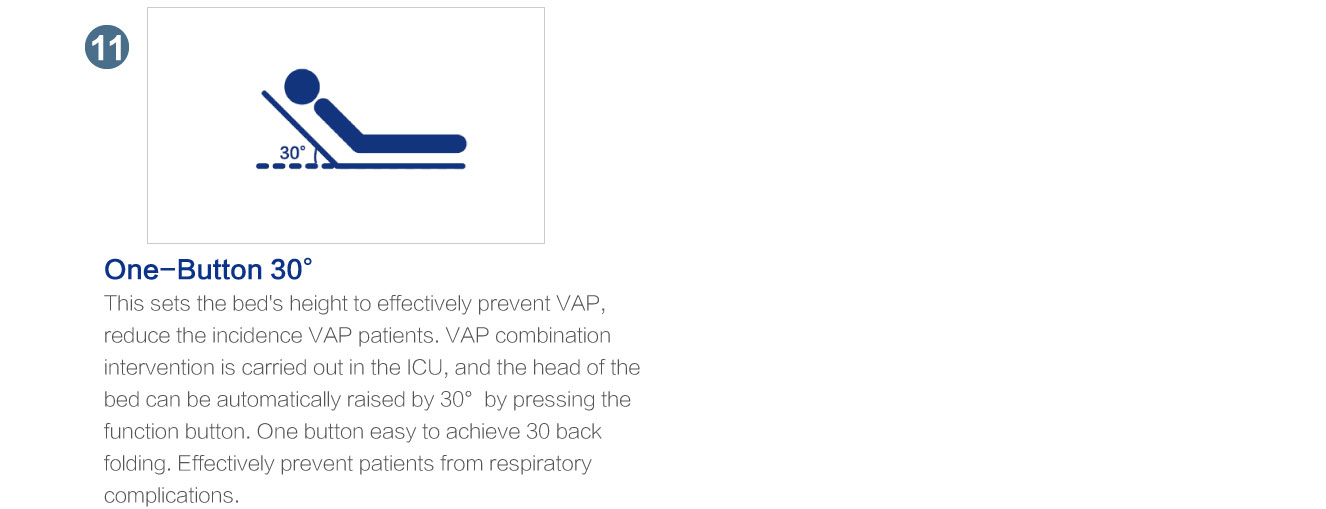

- Backrest 0-70°±5°, Leg rest 0-40°±5°, Height adjustment: 460-800±10mm, Trendelenburg and Revers Trendelenburg 0-12°±3°, Lateral tilt 0-30°，Auto-contour, Weighing scale, One-button backrest adjustment 30°, One-button reset to horizontal position, One-Button inspection Position, One-Button Sleeping Position, One-Button Mobilisation Position, One-Button Rescue Position.
- Five motors, high quality and noise-free, there are built-in control buttons on the backrest side rails and LED screen nurse control on the bed footboardboard, with patient lock button, with remote control panel.

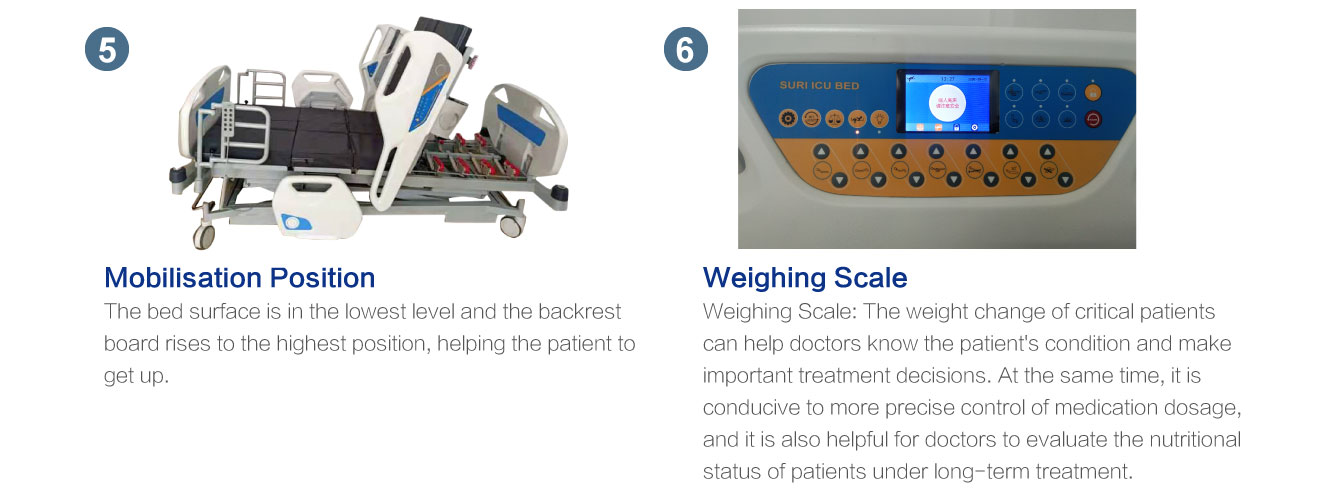

- Multi-function digital weighing system. The digital display is built in on the control panel of bed footboardboard. The measuring weight of 0-180kg can be measured and the weighing accuracy is 0.1kg, which can be measured continuously and display the patient’s weight in real time.
- Manual dual side CPR on the backrest is to make the whole bed surface flatted.

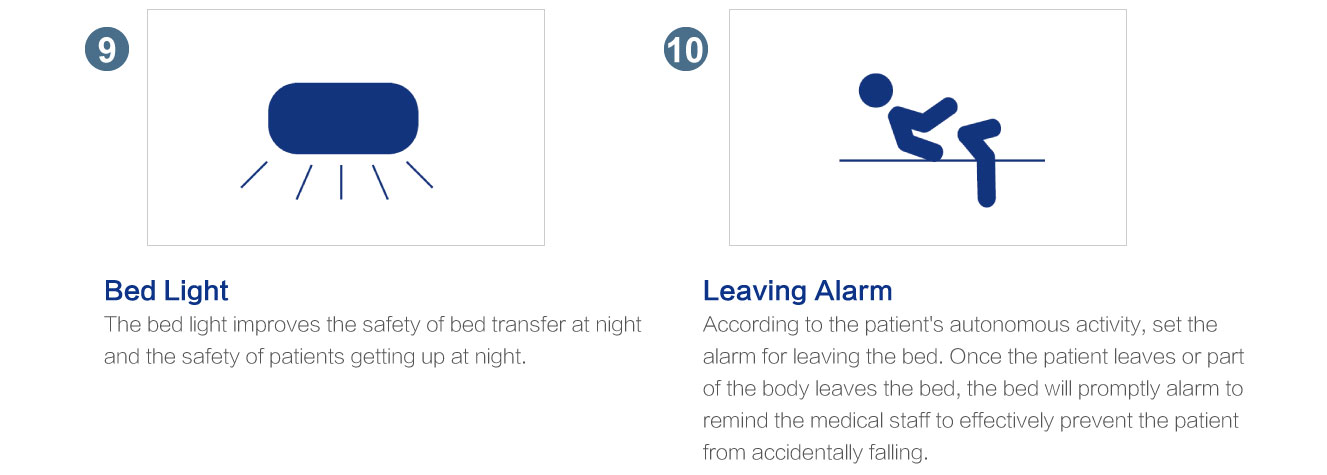

- Leaving alarm: the patient left or part of the body to leave the bed, bed will alarm in time.
- Angle indicators are on the both side of backrest side rails.
- Bed light under the bed can automatically detect light changes and provide warm light in the dark environment.
Frequently Asked Questions
1. What are the dimensions and weight capacity of the SURI ICU Bed B (RMCJH381B)?
The SURI ICU Bed B model RMCJH381B features an overall dimension of L2277mm by W1099mm, with an adjustable height range from 460mm to 800mm. The bed platform itself measures 1980mm by 880mm, providing ample space for patient comfort. Designed for heavy-duty clinical use, the integrated digital weighing system can accurately measure and display a patient's weight from 0kg up to 180kg in real time.
2. How does the weighing scale system work on the SURI RMCJH381B ICU bed?
The SURI RMCJH381B is equipped with a high-precision multi-function digital weighing system that is built directly into the nurse control panel on the footboard. This system offers a weighing accuracy of 0.1kg, allowing medical staff to monitor patient weight continuously without requiring the patient to leave the bed. The digital display provides real-time data, which is essential for calculating precise medication dosages and monitoring fluid retention in critical care environments.

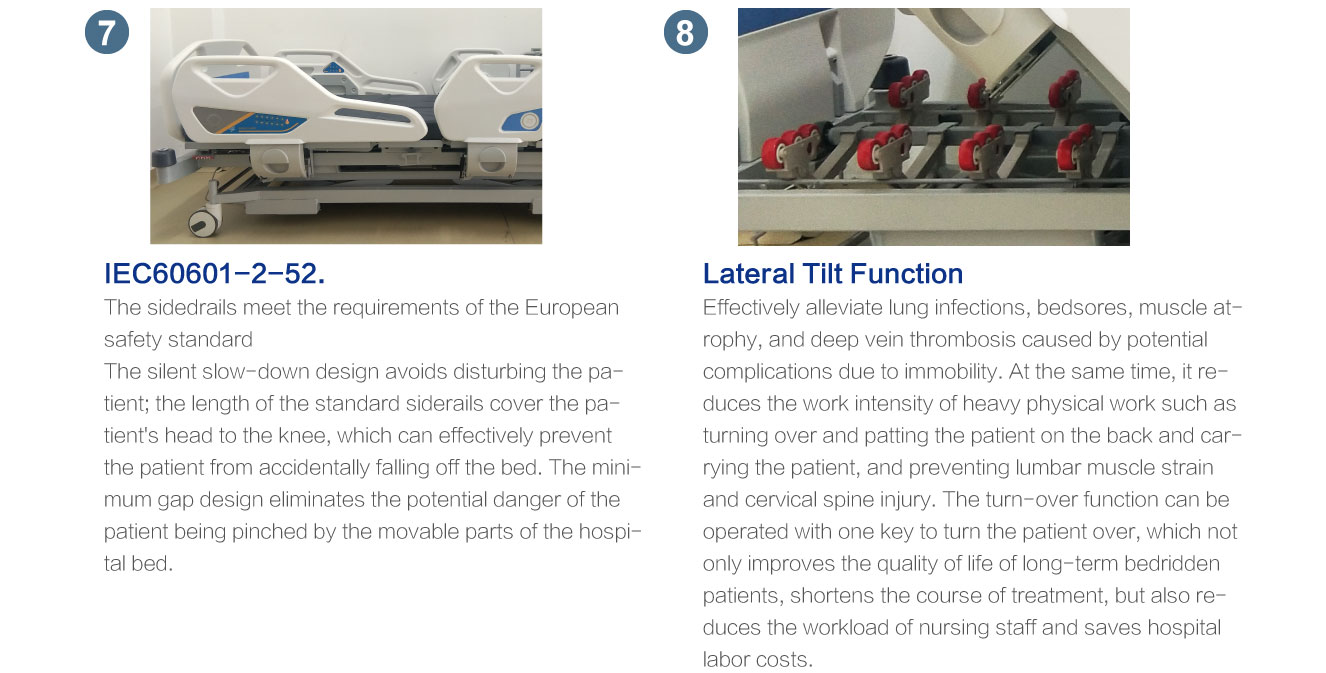

3. What are the benefits of the lateral tilt and auto-contour features in this ICU bed?
The SURI ICU Bed B provides a lateral tilt range of 0 to 30 degrees, which is a critical feature for preventing pressure ulcers and assisting in pulmonary drainage for bedridden patients. In addition to lateral tilting, the five-motor system supports an auto-contour function that synchronizes the backrest (0-70°) and leg rest (0-40°) adjustments. These movements help in reducing abdominal pressure and prevent the patient from sliding toward the foot of the bed during repositioning.
4. Does the SURI ICU Bed B include emergency CPR and patient safety alarms?
Yes, the SURI RMCJH381B is designed with high-priority safety features including a manual dual-side CPR release located on the backrest to instantly flatten the bed surface for emergency procedures. It also features a built-in "leaving alarm" that alerts nursing staff if a patient attempts to exit the bed or if a significant portion of their body moves off the platform. For additional safety, the bed includes four corner bumpers, angle indicators for precise positioning, and an under-bed light that automatically activates in dark environments.
5. What materials are used in the construction of the SURI RMCJH381B ICU bed?
The SURI ICU Bed B is constructed using premium cold-rolled steel for the bed platform, structure, and legs, all finished with an electrostatic powder coating for enhanced durability and infection control. The headboard, footboard, and four-section side rails are made from high-density polyethylene (HDPE), which is easy to clean and impact-resistant. The side rails are operated by a smooth gas spring mechanism, and the entire unit is supported by a central braking system for maximum stability in a hospital setting.
Product Introduction

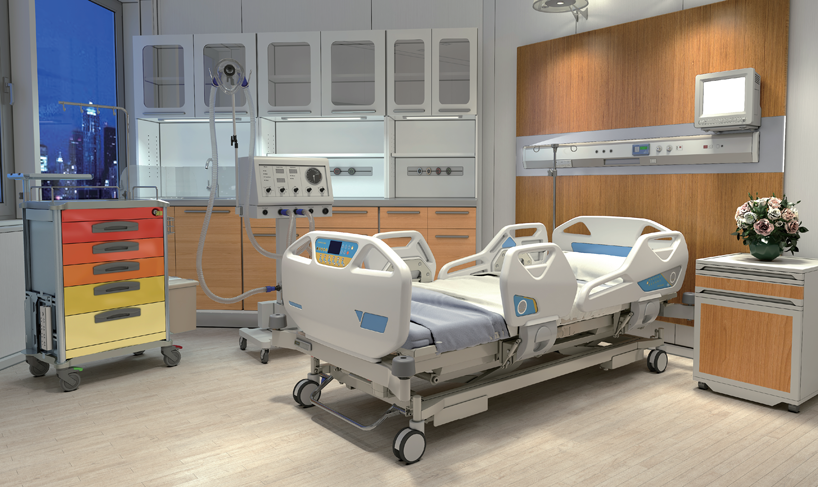

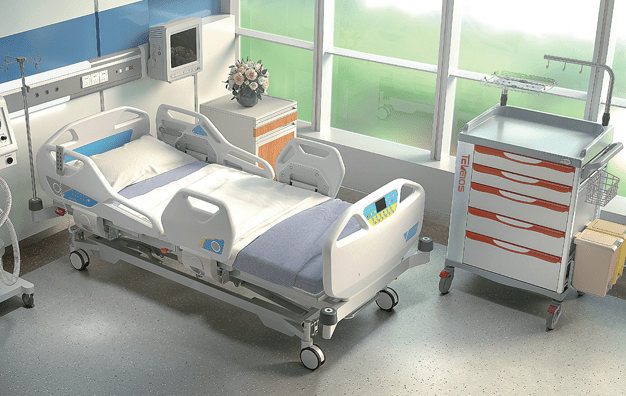

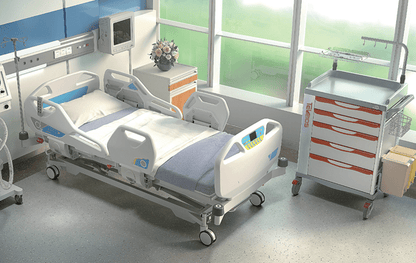

Product Display

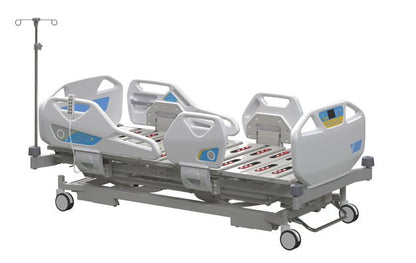

Product Detail Display
