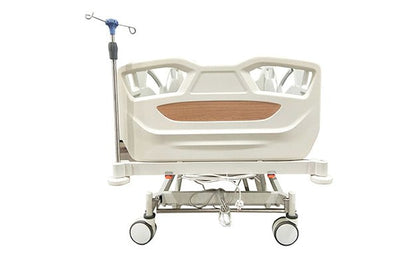

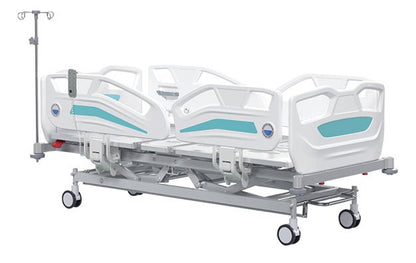

- Product Name: ANÓTEROS Electric Bed A1\A2
- Model Number: RMCJH251A1/RMCJH251A2
- Dimensions: L2240xW1060xH490-790±10mm
- Material: Cold Rolled Steel, HDPE
Product Material
- Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating.
- The Bed platform consist of four foldable sections, stamping frame (RMCJH251A1).
- The Bed platform is combined by PE plastic pillar, which is easy to clean and detachable (RMCJH251A2).
- Detachable HDPE bed headboard and footboard.
- Four-section HDPE side rails operated by gas spring.
- Four corner bumpers are for bed protective.
Product Parameters
- Bed Platform: 1980x900mm
- Backrest: 0-70°±5°
- Legrest: 0-40°±5
- Height Adjustment: 490-790±10mm
- Trendelenburg and Revers Trendelenburg: 0-12°±3°
- Brakes System: Central Brake
- Sticker Color: Wood Grain\ Lake Blue
- Motors: 4 Motors
- Control Panel: Remote Control
Product Feature
- Backrest 0-70°±5°, Leg rest 0-40°±5°, Height adjustment: 490-790±10mm, Trendelenburg and Revers Trendelenburg 0-12°±3°, Auto-contour, Calf Raising.
- Four motors, high quality and noise-free, with remote control.
- Manual CPR is to make the whole bed surface flatted.
- Electric CPR is to make the backrest board flatted quickly.
- Backrest radiolucent board board and X-ray cassette(optional function).
- Auto regression reduce the abdominal pressure of patient.
- Blue liquid angle indicators on backrest and legrest side rails.
- Bedside card for patient name display, Four infusion holes, four drainage hooks around the bed.
- Four 125mm diameter castors with central brake.
- The length of the bed can be extended 15cm (optional function).
Frequently Asked Questions
What are the dimensions and mattress platform size of the ANÓTEROS A1/A2 electric hospital bed?
The ANÓTEROS Electric Bed features an overall external dimension of 2240mm in length, 1060mm in width, and an adjustable height range between 490mm and 790mm. For patient comfort and mattress fitting, the internal bed platform measures 1980mm by 900mm, providing a standard size for medical environments while offering an optional extension feature that can increase the bed length by an additional 15cm if required.
What is the difference between the ANÓTEROS RMCJH251A1 and RMCJH251A2 electric bed models?
The primary distinction between the two models lies in the construction of the bed platform. The RMCJH251A1 model is designed with a four-section foldable stamping frame made of premium cold rolled steel, whereas the RMCJH251A2 model utilizes a PE plastic pillar platform that is specifically engineered to be detachable and easy to clean for enhanced infection control. Both models maintain the same external dimensions and utilize high-quality HDPE for the headboards, footboards, and side rails.
Does the ANÓTEROS electric hospital bed include manual and electric CPR emergency functions?
Yes, the ANÓTEROS electric bed is equipped with dual CPR functionality to ensure patient safety during emergency medical procedures. The manual CPR lever allows medical staff to instantly flatten the entire bed surface, while the electric CPR function is specifically designed to rapidly return the backrest board to a flat position at the push of a button. These features work alongside the four noise-free motors to provide both precision and speed in critical care situations.
What adjustment features are controlled by the four motors on the ANÓTEROS electric bed?
The four-motor system on the ANÓTEROS A1/A2 allows for comprehensive positioning via a handheld remote control, including backrest adjustment from 0 to 70 degrees and leg rest adjustment from 0 to 40 degrees. Furthermore, the motors manage the bed's height elevation and facilitate both Trendelenburg and Reverse Trendelenburg positions up to 12 degrees. Specialized movements such as auto-contour, calf raising, and auto-regression are also integrated to help reduce abdominal pressure and improve patient ergonomics.
What materials are used in the construction of the ANÓTEROS A1/A2 medical bed to ensure durability and hygiene?
The structural integrity of the ANÓTEROS bed is provided by premium cold rolled steel used in the platform, frame, and legs, all of which are finished with an electrostatic powder coating for long-term durability. For hygiene and safety, the bed employs High-Density Polyethylene (HDPE) for the detachable head and footboards as well as the four-section gas-spring operated side rails. These materials are chosen for their high impact resistance and ease of sterilization, complemented by four corner bumpers that protect the bed and facility walls from damage during transport.

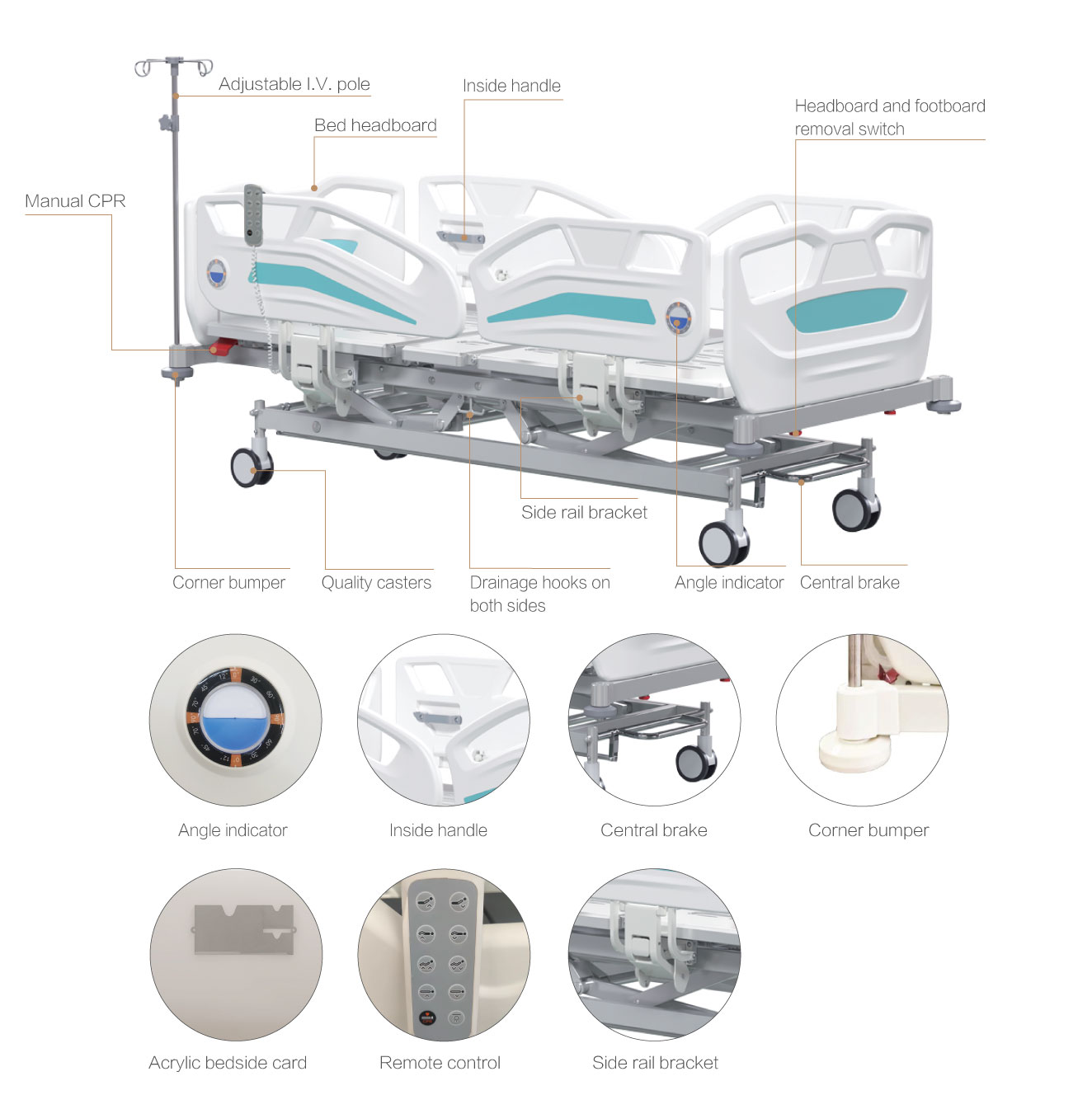

Product Detail Display
