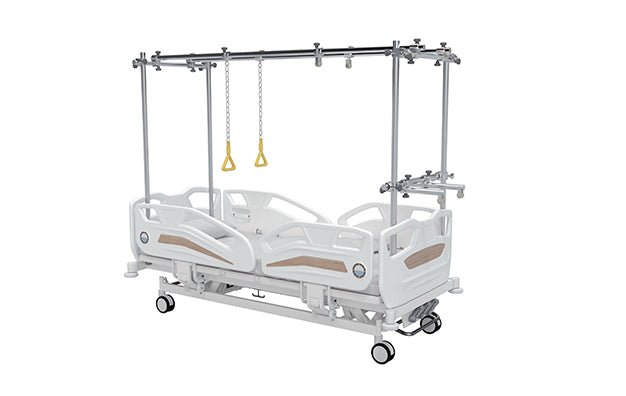

- Product Name: SPECTRA Orthopedics Traction Bed (Three Functions Manual)
- Model Number: RMC-SO151A1G1
- Dimensions: L2240xW1060xH470-680mm
- Material: Cold Rolled Steel, HDPE, Aluminum Alloy
- Traction Shelf: 2023*793*1503mm
- Traction Shelf Height: 1780-2020±10mm
Product Material
- Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating.
- The bed platform consist of four foldable sections, stamping frame.
- Detachable HDPE bed headboard and footboard, four corner bumper is for bed protective.
- Four-section full length protection HDPE side rails operated by gas spring.
- Orthopedics traction shelf is made of molding aluminum alloy.
Product Parameters
- Bed Platform: 1980x900mm
- Backrest: 0-75°±5°
- Legrest: 0-45°±5
- Height Adjustment: 470-680±10mm
- Brakes System: Central Brake
- Sticker Color: Wood Grain/ Lake Blue
- Side Rails: ABS Side Rails
- Orthopedics Traction Shelf: Aluminum Alloy 2023*793*1503mm
Product Feature
- Backrest adjustment 0-75°±5°; Legrest adjustment 0-45°±5°; Height adjustment: 470-680±10mm.
- Blue liquid angle indicator on backrest and legrest side rails.
- Clear acrylic head card for patient name display, four infusion holes, four drainage hooks around the bed.
- Mechanical crank operation with overload protection.
- The screw handle is foldable under the bed footboard.
- Four 125mm diameter castors with central brake.
- Orthopedics traction shelf is made of molding aluminum alloy 2023*793*1503mm.
Frequently Asked Questions
What are the primary adjustment functions of the SPECTRA Three Functions Manual Orthopedics Traction Bed?
The SPECTRA RMC-SO151A1G1 manual traction bed is designed with three essential mechanical functions to facilitate patient comfort and orthopedic care. These include a backrest adjustment ranging from 0 to 75 degrees, a legrest adjustment from 0 to 45 degrees, and a variable height adjustment that moves between 470mm and 680mm. Each of these functions is operated via a manual mechanical crank system located at the foot of the bed, which includes built-in overload protection and a foldable handle design to save space when not in use.
What materials are used in the construction of the SPECTRA RMC-SO151A1G1 orthopedics bed?
Durability and hygiene are prioritized in the construction of the SPECTRA orthopedics bed through the use of high-grade industrial materials. The bed platform, main structure, and legs are manufactured from premium cold-rolled steel treated with an electrostatic powder coating to prevent corrosion. The bed’s headboard, footboard, and four-section full-length side rails are made from high-density polyethylene (HDPE), while the specialized orthopedic traction shelf is constructed from molding aluminum alloy to ensure a lightweight yet high-strength support system for traction therapy.
How does the orthopedics traction shelf integrate with the SPECTRA bed system?
The orthopedics traction shelf is a specialized component of the SPECTRA RMC-SO151A1G1 model, measuring 2023mm by 793mm by 1503mm with an adjustable height range of 1780mm to 2020mm. It is engineered from molding aluminum alloy to provide a stable framework for various orthopedic suspension and traction needs. This shelf is designed to fit securely over the cold-rolled steel bed platform, working in tandem with the manual adjustment functions to ensure precise positioning for patients recovering from fractures or musculoskeletal surgeries.
What safety and stability features are included in the SPECTRA manual traction bed?
Safety is addressed through a comprehensive central braking system that controls four 125mm diameter castors, allowing for immediate stabilization of the bed in a hospital environment. The bed also features four-section HDPE side rails operated by gas springs for smooth movement and four corner bumpers to protect the bed structure during transport. Furthermore, the backrest and legrest side rails are equipped with blue liquid angle indicators to help medical staff monitor precise patient positioning, while four drainage hooks and infusion holes provide additional utility for clinical care.
What are the overall dimensions and space requirements for the SPECTRA orthopedics traction bed?
The SPECTRA orthopedics traction bed has a total footprint of 2240mm in length and 1060mm in width, with the bed platform itself providing a spacious area of 1980mm by 900mm for the patient. Because the bed includes an integrated aluminum alloy traction shelf that reaches a maximum height of approximately 2020mm, facility managers should ensure adequate vertical clearance. The height of the bed platform is adjustable between 470mm and 680mm, providing flexibility for both patient transfers and ergonomic access for healthcare providers.
