- Product Name: Manual Bed (Three Functions)
- Model Number: RMC-SO113/RMC-SO114
- Dimensions: L2080×W960×H500-700mm
- Function: Three Functions
- Material: Cold Rolled Steel, ABS, Premium Aluminum Alloy

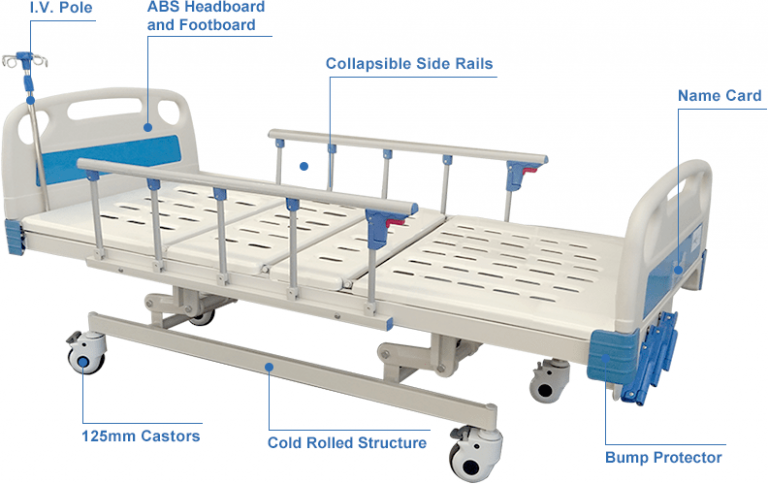

Product Material
- Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating.
- The bed paltform is made of premium cold rolled steel with electrostatic powder coating. There are two kinds of bed board: stamping frame(RMC-SO113) and strip board frame (RMC-S0114).
- Detachable ABS bed headboard and footboard.
- Two-section collapsible side rails, made of premium aluminum alloy.
Product Parameters
- Bed Platform: L1980×W900mm
- Backrest: 0-75°
- Legrest: 0-45°
- Height: 500-700mm
- Bed Application: Hospital and Clinic
- Functions: Three Functions
- Sticker Color Blue
- Brake Wheels Brake
Product Feature

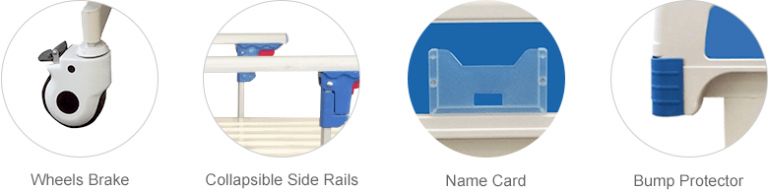

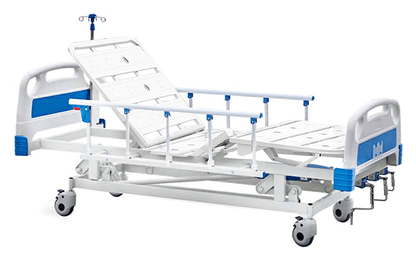

- Manual Three Functions: Backrest Adjustment 0-75°; Legrest Adjustment 0-45°; Height Adjustment: 500-700mm.
- Clear acrylic head card for patient name display, two infusion holes.

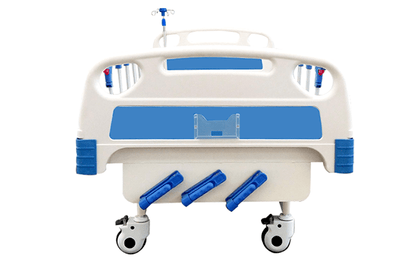

- The crank is foldable under the bed foot.
- Four 125mm diameter castors with wheels brake.
Frequently Asked Questions
What are the primary functions of the RMC-SO113 and RMC-SO114 manual hospital beds?
The RMC-SO113 and RMC-SO114 manual beds are designed with three primary mechanical functions to ensure patient comfort and caregiver efficiency. These functions include a backrest adjustment that ranges from 0 to 75 degrees, a legrest adjustment between 0 and 45 degrees, and a variable height adjustment that allows the bed platform to move between 500mm and 700mm. These adjustments are operated via foldable cranks located at the foot of the bed, which can be tucked away when not in use to save space and prevent accidental obstruction.
What is the difference between the RMC-SO113 and RMC-SO114 manual bed models?
The main distinction between the RMC-SO113 and the RMC-SO114 lies in the construction of the bed platform frame. While both models share the same external dimensions and functional capabilities, the RMC-SO113 features a stamping frame bed board, whereas the RMC-S0114 is designed with a strip board frame. Both options are manufactured using premium cold-rolled steel with an electrostatic powder coating to ensure long-term durability and resistance to corrosion in clinical environments.
What materials are used in the construction of these three-function manual medical beds?
These manual hospital beds are built using high-grade materials specifically selected for hygiene and structural integrity. The main bed platform, structure, and legs are fabricated from premium cold-rolled steel finished with an electrostatic powder coating for a smooth, easy-to-clean surface. The headboard and footboard are made from detachable ABS plastic, which is lightweight and impact-resistant, while the collapsible side rails are constructed from a premium aluminum alloy to provide a sturdy safety barrier for patients.
What are the standard dimensions and mobility features of the RMC-SO113 hospital bed?
The RMC-SO113 has a total external footprint of L2080mm by W960mm, with a dedicated bed platform area measuring L1980mm by W900mm. To facilitate easy movement within a hospital or clinic, the bed is equipped with four high-quality 125mm diameter castors. Each wheel includes an integrated brake system, allowing medical staff to securely lock the bed in place during procedures or patient transfers to ensure maximum stability and safety.
What additional patient safety and convenience features do these manual beds offer?
Beyond the adjustable positioning, these beds include several features designed to enhance patient care and clinical organization. Each bed is equipped with two infusion holes to accommodate IV poles and a clear acrylic head card for the easy display of patient names and medical information. For added safety, the two-section aluminum alloy side rails can be collapsed when not needed, and the overall design is tailored for use in both professional hospital settings and private clinics.
Product Introduction
Product Detail Display
