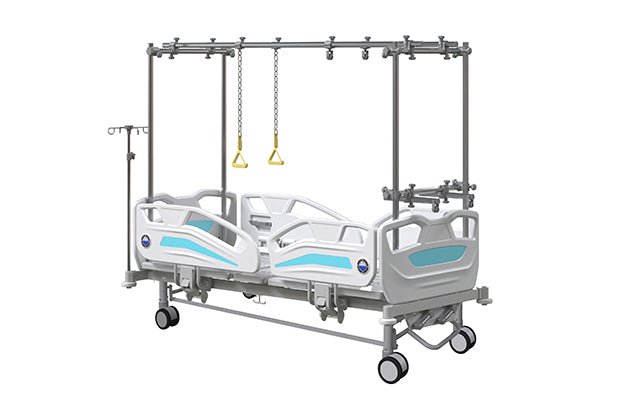

- Product Name: SPECTRA Orthopedics Traction Bed (Two Functions Manual)
- Model Number: RMC-SY151A1G1
- Dimensions: L2240xW1060xH500mm
- Material: Cold Rolled Steel, HDPE, Aluminum Alloy
- Traction Shelf: 2023*793*1503mm
- Traction Shelf Height: 1780-2020±10mm
Product Material
- Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating.
- The bed platform consist of four foldable sections, stamping frame.
- Detachable HDPE bed headboard and footboard, four corner bumper is for bed protective.
- Four-section full length protection HDPE side rails operated by gas spring.
- Orthopedics traction shelf is made of molding aluminum alloy.
Product Parameters
- Bed Platform: 1980x900mm
- Backrest: 0-75°±5°
- Legrest: 0-45°±5
- Brakes System: Central Brake
- Sticker Color: Wood Grain/ Lake Blue
- Side Rails: ABS Side Rails
- Orthopedics Traction Shelf: Aluminum Alloy 2023*793*1503mm
Product Feature
- Backrest adjustment 0-75°±5°; Legrest adjustment 0-45°±5°.
- Blue liquid angle indicator on backrest and legrest side rails.
- Clear acrylic head card for patient name display, four infusion holes, four drainage hooks around the bed.
- Mechanical crank operation with overload protection.
- The screw handle is foldable under the bed footboard.
- Four 125mm diameter castors with central brake.
- Orthopedics traction shelf is made of molding aluminum alloy 2023*793*1503mm.
Frequently Asked Questions
What are the primary manual adjustment functions of the SPECTRA RMC-SY151A1G1 orthopedic traction bed?
The SPECTRA RMC-SY151A1G1 orthopedic traction bed features a two-function manual system that allows healthcare providers to precisely position patients through a mechanical crank operation equipped with overload protection. The backrest adjustment range spans from 0 to 75 degrees, while the legrest can be adjusted from 0 to 45 degrees, providing essential postural support for orthopedic recovery. To maintain a clean and safe environment, the manual screw handles are designed to be foldable, tucking neatly under the bed footboard when the desired angles are set.
What materials are used in the construction of the SPECTRA RMC-SY151A1G1 orthopedic traction bed?
The construction of the SPECTRA RMC-SY151A1G1 focuses on durability and hygiene, utilizing a bed platform, structure, and legs made from premium cold-rolled steel finished with an electrostatic powder coating. The bed includes detachable HDPE head and footboards with integrated corner bumpers for impact protection, alongside full-length HDPE side rails operated by gas springs. The specialized orthopedic traction shelf is manufactured from high-quality molding aluminum alloy, ensuring a lightweight yet high-strength framework for medical traction procedures.
What are the dimensions and height specifications for the SPECTRA orthopedic traction shelf?
The aluminum alloy traction shelf on the SPECTRA RMC-SY151A1G1 is designed with specific dimensions of 2023mm in length, 793mm in width, and 1503mm in height to accommodate various orthopedic requirements. One of its most critical features is the adjustable traction shelf height, which can range from 1780mm to 2020mm with a small tolerance of 10mm. This adjustability allows medical staff to calibrate the traction setup to the specific height and tension needs of the patient during their treatment.
What safety and monitoring features are included with the SPECTRA RMC-SY151A1G1 manual bed?
For enhanced patient safety and clinical accuracy, the SPECTRA RMC-SY151A1G1 includes blue liquid angle indicators integrated into the backrest and legrest side rails to monitor elevation levels. The bed is equipped with a central brake system that manages four 125mm diameter castors, allowing for secure locking or smooth mobility within a facility. Additionally, the bed frame features a clear acrylic head card for patient identification, four infusion holes for IV poles, and four drainage hooks to support comprehensive bedside medical care.
What is the total footprint and platform size of the SPECTRA RMC-SY151A1G1 orthopedic bed?
The overall external dimensions of the SPECTRA RMC-SY151A1G1 orthopedic traction bed are 2240mm in length, 1060mm in width, and 500mm in height, making it a standard size for most orthopedic wards. The actual bed platform, where the patient resides, measures 1980mm by 900mm and consists of a four-section foldable stamping frame. This configuration ensures that while the bed accommodates the large aluminum alloy traction framework, the patient still has a spacious and ergonomic surface for long-term recovery.
