- Product Name: SPECTRA-MT (Three Functions Manual)
- Model Number: RMC-SO151A1/RMC-SO151B1
- Dimensions: L2240xW1060xH470-680±10mm
- Function: Three Functions
- Material: Cold Rolled Steel,HDPE
Product Material
- Bed platform, structure and leg are all made of premium cold-rolled steel with electrostatic powder coating.
- The Bed platform consist of four foldable sections, stamping frame.
- Detachable HDPE bed headboard and footboard, four corner bumpers are for bed protective.
- Four-section full-length protection HDPE side rails operated by gas spring.
Product Parameters
- Bed Platform: 1980x900mm
- Backrest: 0-75°±5°
- Legrest: 0-45°±5
- Height Adjustment: 470-680±10mm
- Brakes System: entral Brake\ Wheels Brake
- Sticker Color: Wood Grain, Lake Blue
Product Feature
- Backrest adjustment 0-75°±5°;Legrest adjustment 0-45°±5°; Height adjustment: 470-680±10mm.
- Blue liquid angle indicator on backrest and legrest side rails.
- Clear acrylic bedside card for patient name display, Four infusion holes, two drainage hooks around the bed.
- Mechanical crank operation with overload protection.
- The screw handle is foldable under the bed footboard.
- Four 125mm diameter castors with central brake (RMC-SO151A1), Four 125mm diameter castors with wheel brake (RMC-SO151B1).
Frequently Asked Questions
What are the three functions of the SPECTRA-MT manual hospital bed?
The SPECTRA-MT manual hospital bed is designed with three primary mechanical functions that provide essential clinical positioning and patient comfort: backrest adjustment from 0 to 75 degrees, legrest adjustment from 0 to 45 degrees, and a vertical height adjustment range between 470mm and 680mm. These functions are operated via a mechanical crank system located at the foot of the bed, which features a foldable handle and integrated overload protection to ensure smooth operation and long-term mechanical durability.
What is the difference between the SPECTRA-MT RMC-SO151A1 and RMC-SO151B1 models?
The primary difference between the SPECTRA-MT RMC-SO151A1 and the RMC-SO151B1 models is the configuration of the braking and castor system. The RMC-SO151A1 model is equipped with a central brake system that allows all four 125mm diameter castors to be locked or released simultaneously, while the RMC-SO151B1 model features individual wheel brakes on each of the four 125mm castors. Aside from the braking mechanism, both models share the same three-function capabilities, cold-rolled steel construction, and HDPE side rail specifications.
What materials are used in the construction of the SPECTRA-MT adjustable hospital bed?
The SPECTRA-MT hospital bed is engineered for durability and hygiene using premium materials suitable for medical environments. The main bed platform, structure, and legs are manufactured from cold-rolled steel treated with an electrostatic powder coating to prevent corrosion and wear. The bed’s headboard, footboard, and four-section full-length side rails are made from High-Density Polyethylene (HDPE), which is impact-resistant and easy to sanitize, while the four corner bumpers provide additional protection during bed movement and transport.
Does the SPECTRA-MT hospital bed include safety rails and angle indicators?
Yes, the SPECTRA-MT manual bed is equipped with advanced safety features, including four-section full-length HDPE side rails that are operated by a gas spring for smooth lowering and raising. To assist caregivers in precise patient positioning, the side rails include integrated blue liquid angle indicators for both the backrest and legrest sections. These safety features are complemented by four corner bumpers and a mechanical crank system that hides under the footboard to prevent tripping hazards or accidental damage.
What are the dimensions and patient care features of the SPECTRA-MT medical bed?
The SPECTRA-MT medical bed has overall external dimensions of L2240mm by W1060mm, with a spacious bed platform measuring 1980mm by 900mm. To facilitate comprehensive patient care, the bed includes several integrated accessories such as a clear acrylic bedside card for patient identification, four infusion holes for IV poles, and two drainage hooks. The height-adjustable frame (470-680mm) allows for easier patient transfers and an ergonomic working height for medical professionals, making it a versatile choice for various healthcare settings.
Product Display

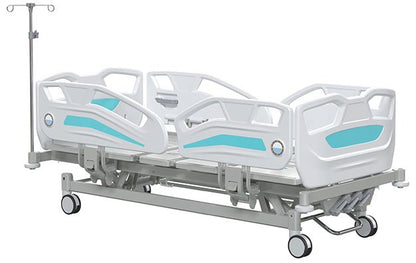

RMC-SO151A1

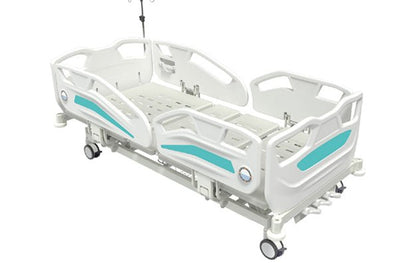

RMC-SO151B1
Product Detail Display
