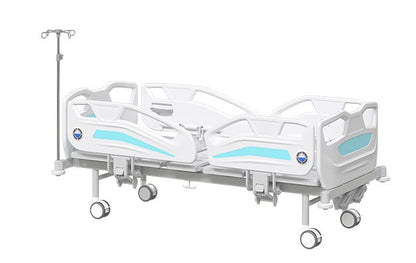

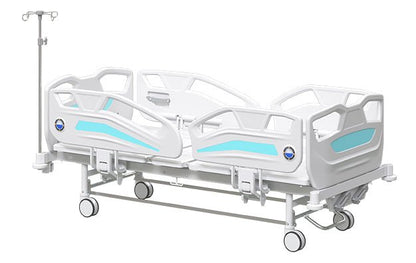

- Product Name: SPECTRA-MS (Two Functions Manual)
- Model Number: RMC-SY151A1/RMC-SY151B1
- Dimensions: L2240×W1060×H500mm
- Function: Two Functions
- Material: Cold Rolled Steel, HDPE
Product Material
- Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating.
- The Bed platform consist of four foldable sections, stamping frame.
- Detachable HDPE bed bed headboard and footboard, four corner bumper is for bed protective.
- Four-section full length protection HDPE side rails operated by gas spring.
Product Parameters
- Bed Platform: 1980x900mm
- Backrest: 0-75°±5°
- Legrest: 0-45°±5
- Brakes System: Central Brake\ Wheels Brake
- Sticker Color: Wood Grain, Lake Blue

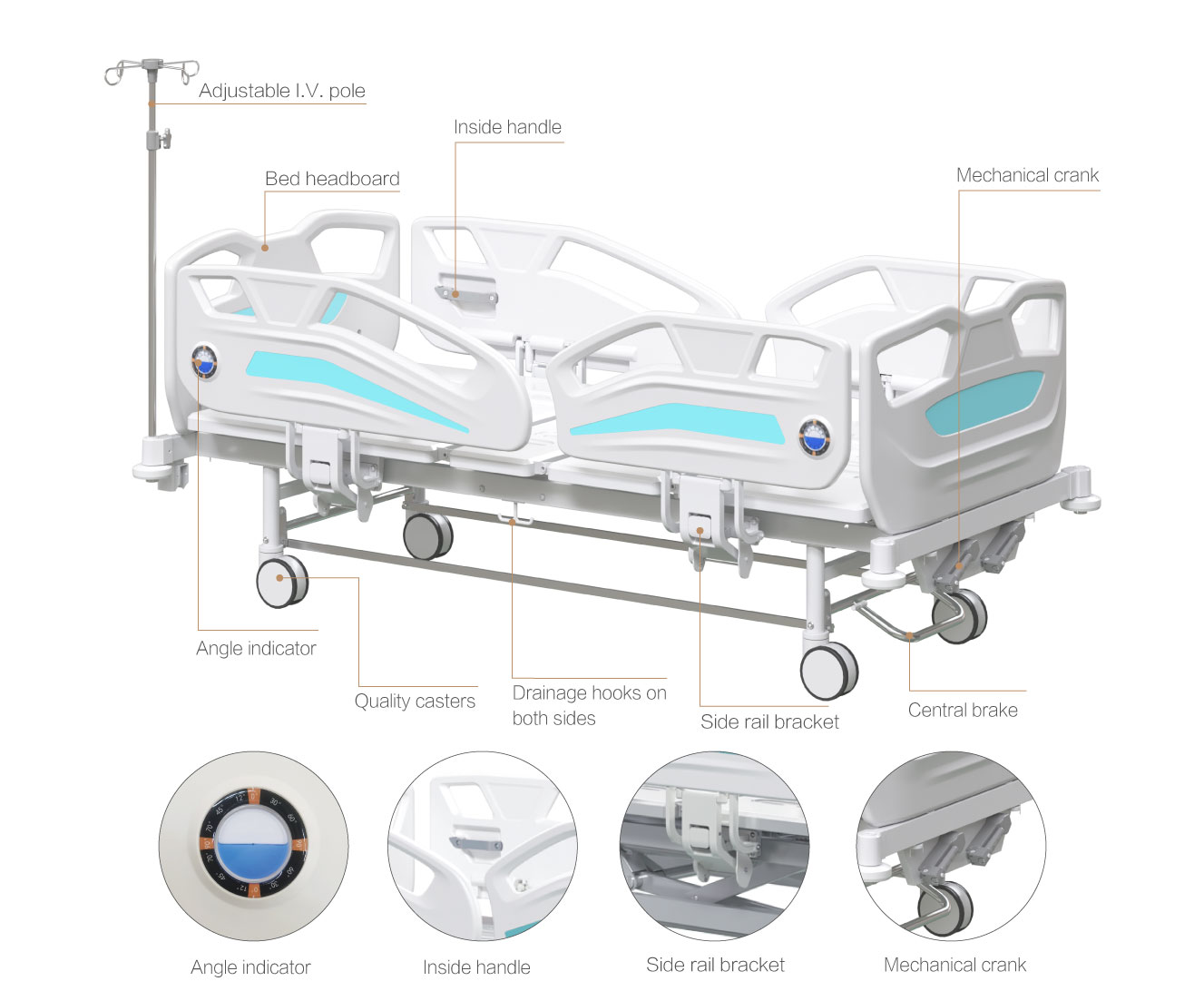

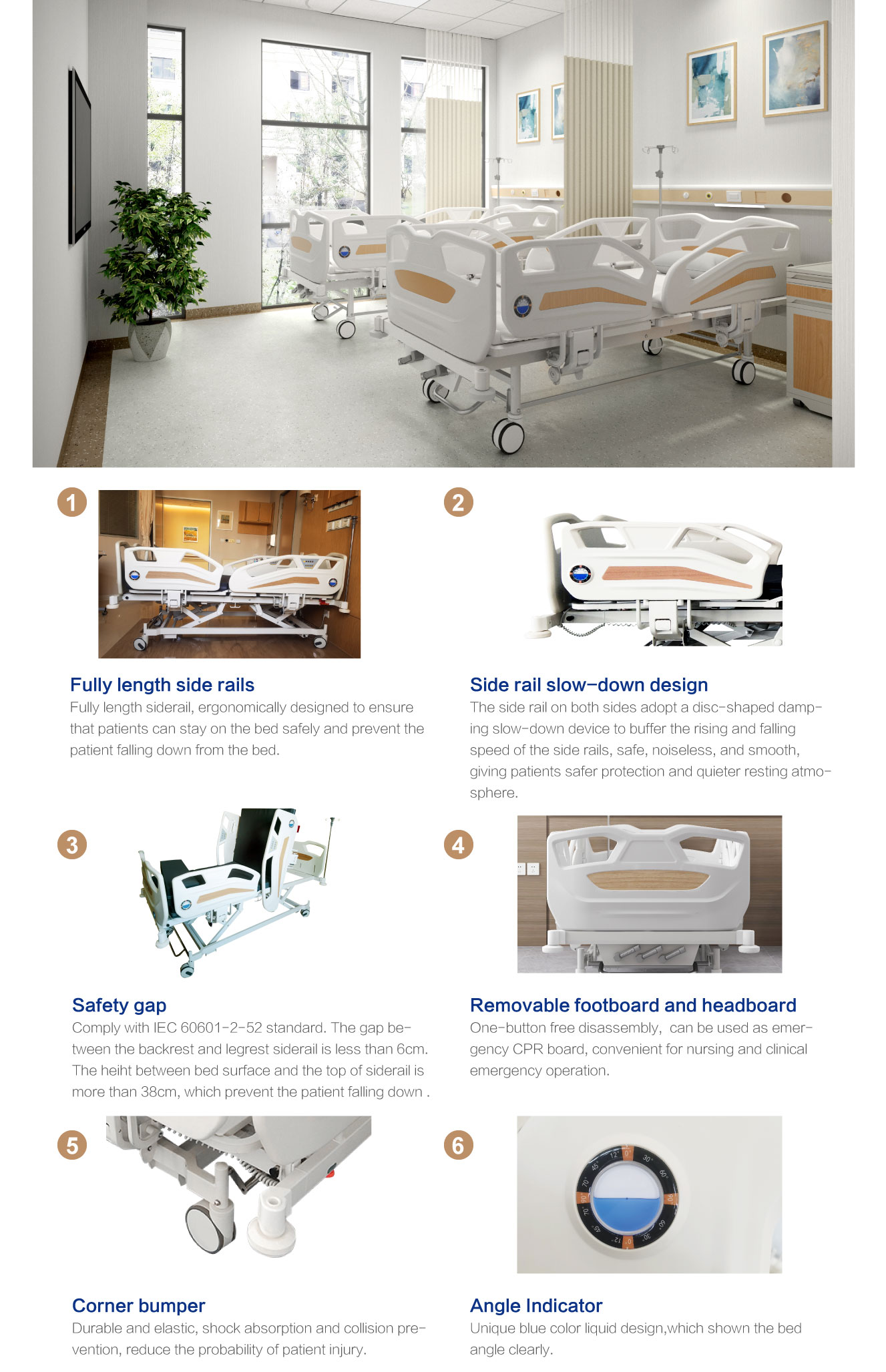

Product Feature
- Manual Two functions: Backrest adjustment 0-75°±5°;Legrest adjustment 0-45°±5°.
- Blue liquid angle indicators on backrest and legrest side rails.
- Clear acrylic head card for patient name display, Four infusion holes, four drainage hooks around the bed.
- Mechanical crank operation with overload protection.
- The screw handle is foldable under the bed footboard.
- Four 125mm diameter castors with central brake (RMC-SY151A1), Four 125mm diameter castors with wheel brake (RMC-SY151B1).
- The four corners of the bed body have orthopedic traction frame holes, which can be used for the clinical use of orthopedics when needed (Optional).
Frequently Asked Questions
What functions does the LORI-MS two function manual hospital bed provide for patient care?
The LORI-MS manual hospital bed is designed with two primary mechanical functions that allow for the adjustment of the backrest and the legrest to enhance patient comfort. The backrest can be tilted from 0 to 75 degrees, while the legrest offers an adjustment range of 0 to 45 degrees, both with a margin of error of plus or minus 5 degrees. These adjustments are performed via a manual crank system that includes integrated overload protection and a foldable handle located discreetly under the bed footboard to save space and prevent obstructions.
What is the difference between the RMC-SY171A3 and RMC-SY171B3 hospital bed models?
The main distinction between the RMC-SY171A3 and RMC-SY171B3 models is the type of braking system installed on the 125mm diameter castors. The RMC-SY171A3 model is equipped with a central brake system that allows a caregiver to secure all wheels simultaneously, whereas the RMC-SY171B3 model utilizes individual wheel brakes on each castor. Aside from this mobility control feature, both models share the same premium cold rolled steel construction, HDPE headboards, and overall dimensions of 2250mm in length and 995mm in width.
Is the LORI-MS manual hospital bed suitable for orthopedic clinical use?
Yes, the LORI-MS bed is engineered to support orthopedic applications through the inclusion of specialized orthopedic traction frame holes at all four corners of the bed body. While the traction frame itself is an optional addition, these built-in holes allow medical staff to easily adapt the bed for clinical orthopedic needs when required. This flexibility, combined with the sturdy cold rolled steel platform and stamping frame, ensures the bed can handle the rigorous demands of orthopedic recovery and patient positioning.
What materials are used in the construction of the LORI-MS manual bed to ensure durability?
The LORI-MS manual hospital bed is built for longevity using premium cold rolled steel for the bed platform, the main structure, and the legs, all of which are finished with an electrostatic powder coating for added protection. The headboard and footboard are made from durable High-Density Polyethylene (HDPE) featuring a detachable "smile face" design for easy cleaning and maintenance. Additionally, the bed includes two-section rotation side rails made from the same high-quality steel to provide a secure environment for the patient.
What are the dimensions and weight-bearing features of the LORI-MS manual hospital bed?
The LORI-MS hospital bed has an overall external dimension of L2250mm by W995mm with a fixed height of 500mm, while the actual bed platform where the patient lies measures 1980mm by 900mm. The structure consists of four foldable sections and a stamping frame designed to provide a stable surface for the patient. For added clinical utility, the bed is equipped with four infusion holes and four drainage hooks positioned around the frame, along with a clear acrylic head card for easy patient identification.
