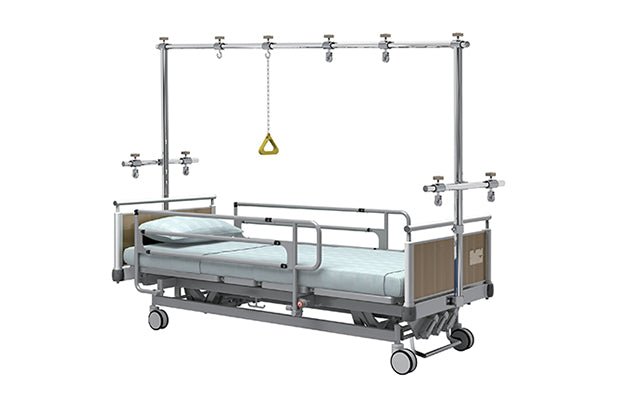

- Product Name: PRODIGY Orthopedics Traction Bed
- Model Number: RMC-SO141A3G1
- Dimensions: L2370*W990*H470-680mm
- Bed platform: 1980*900mm
- Backrest adjustment: 0-75°±5°
- Legrest adjustment: 0-45°±5°
- Height adjustment: 470-680±10mm
- Traction Shelf: 2235*502*1455mm
- Traction Shelf Height: 1780-2020mm
Product Material
- 1. Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating.
- 2. The bed platform comprises four foldable sections, stamping frame.
- 3. Detachable bed headboard and footboard, which are made of premium HPL, which is corrosion resistant, abrasion resistant, anti-fire and anti-statics, molding aluminum alloy frame with corner bumper.
- 4. Two-section rotation side rails, made of premium cold rolled steel with electrostatic powder coating.
- 5. Orthopedics traction shelf is made of stainless steel.
Product Parameters
- Bed Platform: 1980x900mm
- Backrest: 0-75°±5°
- Legrest: 0-45°±5
- Height Adjustment: 470-680±10mm
- Brakes System: Central Brake
- Sticker Color: Beech / Chocolate / Walnut
- Side Rails: Rotation Side Rails
- Orthopedics Traction Shelf: Stainless Steel 2235*502*1455mm
Product Feature
- Backrest adjustment 0-75°±5°; Legrest adjustment 0-45°±5°; Height adjustment: 470-680±10mm.
- Clear acrylic head card for patient name display, four infusion holes, four drainage hooks around the bed.
- Mechanical crank operation with overload protection.
- The screw handle is foldable under the bed footboard.
- Orthopedics traction shelf is made of stainless steel 2235*502*1455mm.
- Four 125mm diameter castors with central brake.
Frequently Asked Questions
What are the dimensions and space requirements for the PRODIGY Orthopedics Traction Bed RMC-SO141A3G1?
The PRODIGY Orthopedics Traction Bed RMC-SO141A3G1 features an overall external dimension of L2370mm by W990mm, with an adjustable height range between 470mm and 680mm. The actual bed platform provides a patient surface of 1980mm by 900mm, while the integrated stainless steel traction shelf extends the total footprint with its specific dimensions of 2235mm by 502mm and a height range of 1780mm to 2020mm.
What materials are used in the construction of the PRODIGY RMC-SO141A3G1 orthopedic bed?
The construction of this orthopedic traction bed prioritizes durability and hygiene by utilizing premium cold-rolled steel with an electrostatic powder coating for the bed platform, structure, and legs. The detachable headboard and footboard are engineered from High-Pressure Laminate (HPL), which offers superior resistance to corrosion, abrasion, fire, and static, while the specialized orthopedics traction shelf is manufactured entirely from high-grade stainless steel for maximum structural integrity.
How do the manual adjustment features work on the PRODIGY Orthopedics Traction Bed?
The PRODIGY RMC-SO141A3G1 utilizes a reliable mechanical crank operation system equipped with built-in overload protection to ensure patient safety during repositioning. Caregivers can manually adjust the backrest from 0 to 75 degrees and the legrest from 0 to 45 degrees, and the screw handles are designed to be foldable under the footboard to save space and prevent accidental interference when the adjustments are complete.
What safety and mobility features are included with the PRODIGY Orthopedics Traction Bed?
For secure patient transport and stability, the bed is equipped with four 125mm diameter castors governed by a sophisticated central brake system that allows for immediate locking. Safety is further enhanced by two-section rotation side rails made of powder-coated cold-rolled steel and corner bumpers mounted on the aluminum alloy frame of the head and footboards to protect the equipment and facility walls during movement.
Does the PRODIGY Orthopedics Traction Bed include accessories for patient care and identification?
The PRODIGY RMC-SO141A3G1 is designed with integrated clinical accessories including a clear acrylic head card for easy patient name display and identification. Additionally, the bed frame is equipped with four infusion holes for IV poles and four drainage hooks strategically placed around the bed platform to facilitate comprehensive medical care for orthopedic patients during their recovery.
