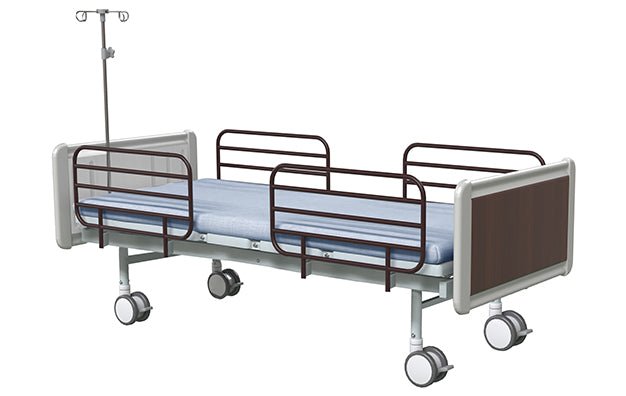

PRODIGY-HMS Manual Two Functions Bed

1. What are the specific dimensions of this manual two-function hospital bed?

The overall external dimensions of this hospital bed are L2160 by W980 by H500mm, providing a sturdy and standardized footprint for clinical environments. The actual bed platform, where the patient resides, measures 1980 by 900mm, which is designed to accommodate standard medical mattresses while ensuring the patient has ample space for comfort and repositioning.

2. How do the backrest and legrest adjustment functions work?

This manual hospital bed features two primary adjustment functions operated by a mechanical crank system located at the foot of the bed. The backrest can be adjusted from a flat position to an incline of 75 degrees, while the legrest can be raised from 0 to 45 degrees, both with a precision margin of plus or minus 5 degrees. These adjustments allow caregivers to easily transition patients into sitting or elevated-leg positions to improve circulation and respiratory comfort.

3. What materials are used to ensure the durability of the bed frame and platform?

The bed platform, main structure, and legs are all manufactured from premium cold-rolled steel that has been treated with an electrostatic powder coating to prevent corrosion and withstand frequent sterilization. For added functionality and hygiene, the detachable headboard and footboard are made from high-quality PP material, while the four-section plug-type side rails are also constructed from coated cold-rolled steel to ensure long-term structural integrity.

4. What safety and mobility features are integrated into the bed design?

Safety is prioritized through the inclusion of a mechanical crank system that features built-in overload protection to prevent mechanical failure during operation. Additionally, the screw handle is designed to be foldable under the footboard to prevent tripping hazards in tight spaces. For mobility, the bed is equipped with four 125mm diameter castors, each featuring an individual wheel brake to allow for smooth transport and secure stationary placement.

5. Does the bed include specialized accessories for clinical patient care?

Yes, this two-function medical bed is equipped with several clinical essentials including a clear acrylic bedside card for easy patient identification display. It also features four integrated infusion holes to support IV poles and two dedicated drainage hooks positioned around the bed frame to manage medical bags and tubing efficiently, making it a comprehensive solution for various hospital and home care settings.
