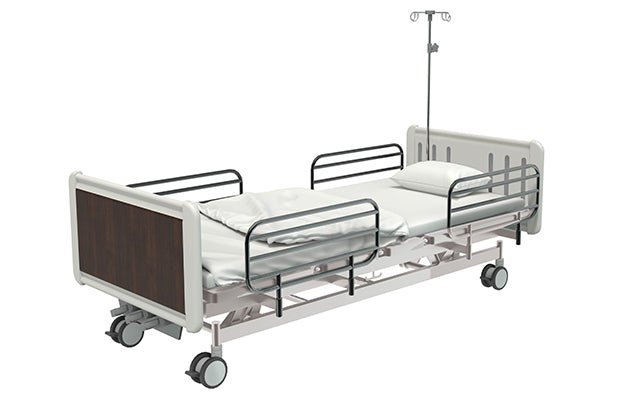

- Product Name: PRODIGY-HMT (Three Functions Manual)
- Model Number: RMCJJ113B
- Dimensions: L2160*W980*H430-680mm
- Material: Cold Rolled Steel, PP
Product Material
- Bed platform, structure and leg are all made of premium cold-rolled steel with electrostatic powder coating.
- The bed platform consists of four foldable sections, a stamping frame.
- Detachable bed headboard and footboard, which are made of good-quality PP.
- Four-section plug-type side rails, made of premium cold rolled steel with electrostatic powder coating.
Product Parameters
- Backrest: 0-75°±5°
- Legrest: 0-45°±5
- Height adjustment: 430-680±10mm
Product Feature
- Backrest adjustment 0-75°±5°; Legrest adjustment 0-45°±5°；Height adjustment: 430-680±10mm.
- Clear acrylic bedside card for patient name display, four infusion holes, two drainage hooks around the bed.
- Mechanical crank operation with overload protection.
- The screw handle is foldable under the bed footboard.
- Four 125mm diameter castors with wheels brake.
Frequently Asked Questions
1. What are the primary adjustment functions of the PRODIGY-HMT manual hospital bed?
The PRODIGY-HMT model RMCJJ113B is a versatile medical bed that provides three manual adjustment functions to enhance patient comfort and clinical care. These functions include a backrest adjustment range from 0 to 75 degrees, a legrest adjustment range from 0 to 45 degrees, and a variable height adjustment that moves between 430mm and 680mm.
2. What materials are used to ensure the durability of the RMCJJ113B medical bed?
This hospital bed is engineered for long-term durability using a bed platform, structure, and legs made from premium cold-rolled steel finished with an electrostatic powder coating. The headboard and footboard are constructed from high-quality, detachable polypropylene, while the four-section side rails are also made from powder-coated cold-rolled steel to ensure a sturdy and hygienic environment.
3. How does the manual crank system work on the PRODIGY-HMT model?
The PRODIGY-HMT utilizes a sophisticated mechanical crank operation that includes built-in overload protection to prevent damage to the lifting mechanism. For added safety and to save space in narrow hospital rooms, the screw handles are designed to be completely foldable, allowing them to be tucked away under the bed footboard when they are not in active use.
4. What are the dimensions and mobility features of this three-function manual bed?
The PRODIGY-HMT measures 2160mm in length and 980mm in width, providing a standard footprint that fits most clinical settings. For easy transportation and secure placement, the bed is equipped with four 125mm diameter castors, each featuring an independent wheel brake system to ensure the bed remains stationary during patient transfers.
5. What clinical accessories are integrated into the PRODIGY-HMT hospital bed design?
To support comprehensive patient care, the RMCJJ113B model includes several integrated medical accessories such as a clear acrylic bedside card for displaying patient information. Furthermore, the bed frame is designed with four infusion holes for IV poles and two drainage hooks, ensuring that essential medical equipment is always within reach and securely attached to the bed structure.
Product Introduction
Product Display
Product Detail Display
