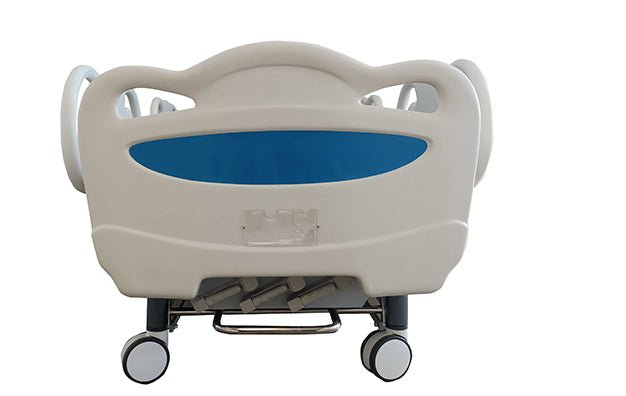

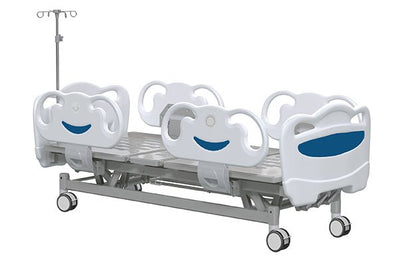

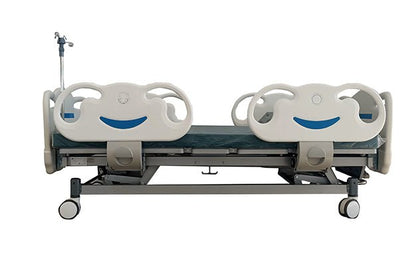

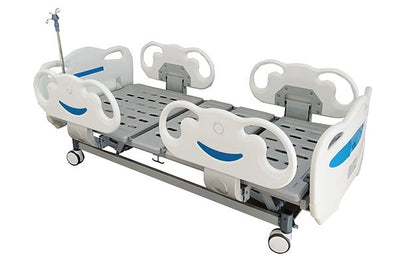

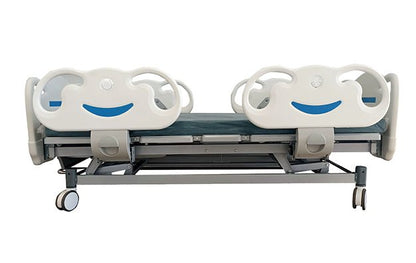

- Product Name: CONTOUR-MT
- (Three Functions Manual Bed)
- Model Number: RMC-SO171A1/RMC-SO171B1
- Dimensions: L2250xW1065xH470-680mm
- Function: Three Functions
- Material: Cold Rolled Steel, HDPE
Product Material
- Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating.
- The Bed platform consist of four foldable sections, stamping frame.
- Detachable ‘Smile face’ HDPE bed headboard and footboard.
- Four-section ‘Smile face’ HDPE side rails operated by gas spring.
Product Parameters
- Bed Platform: 1980x900mm
- Backrest: 0-75°±5°
- Legrest: 0-45°±5
- Height Adjustment: 470-680±10mm
- Brakes System: Central Brake/ Wheels Brake
- Sticker Color: Wood Grain/ Royal Blue
- Side Rails: ABS Side Rails
Product Feature
- Backrest adjustment 0-75°±5°; Legrest adjustment 0-45°±5°; Height adjustment: 470-680±10mm.
- Angle indicators on backrest side rails.
- Clear acrylic head card for patient name display, Four infusion holes, four drainage hooks around the bed.
- Mechanical crank operation with overload protection.
- The screw handle is foldable under the bed footboard.
- Four 125mm diameter castors with central brake.
- The four corners of the bed body have orthopedic traction frame holes, which can be used for the clinical use of orthopedics when needed (Optional).
- The detachable bassinet is specially design for taking care of newborn baby, with 360°visibility (Optional).
Frequently Asked Questions
What are the primary functions and adjustment ranges of the CONTOUR-MT three-function manual bed?
The CONTOUR-MT three-function manual bed provides essential patient positioning through three independent mechanical adjustments. Caregivers can modify the backrest angle from 0 to 75 degrees and the legrest from 0 to 45 degrees to enhance patient comfort and clinical outcomes. Additionally, the bed features a vertical height adjustment range between 470mm and 680mm, which is critical for facilitating safe patient transfers and allowing medical staff to work at an ergonomic height.
What materials are used in the construction of the RMC-SO171A1 and RMC-SO171B1 hospital bed models?
The RMC-SO171A1 and RMC-SO171B1 models are built for long-term durability using premium cold-rolled steel for the bed platform, structure, and legs, all of which are finished with an electrostatic powder coating to prevent corrosion. The bed incorporates high-density polyethylene (HDPE) for the detachable "Smile face" head and footboards as well as the four-section side rails. These HDPE components are chosen for their impact resistance and ease of cleaning, ensuring a hygienic environment for both patients and healthcare providers.
How does the manual crank system work on the CONTOUR-MT medical bed?
The CONTOUR-MT utilizes a mechanical crank operation system located at the footboard of the bed to control its three main functions. This system is designed with built-in overload protection to prevent mechanical failure during heavy use or when reaching maximum adjustment limits. For added safety and to prevent obstruction in high-traffic hospital wards, the screw handles are designed to be foldable, allowing them to be tucked neatly under the bed frame when not in use.
Does the CONTOUR-MT manual bed support orthopedic traction or specialized newborn care?
Yes, the CONTOUR-MT is designed with versatility in mind and offers optional features for specialized clinical departments. The four corners of the bed frame include integrated holes specifically designed to hold an orthopedic traction frame for patients requiring bone or muscle alignment. Additionally, the bed can be equipped with a detachable bassinet that offers 360-degree visibility, making it an ideal solution for bedside newborn care and maternal-infant bonding in a hospital setting.
What safety and mobility features are included with the CONTOUR-MT three-function bed?
Safety is prioritized in the CONTOUR-MT through the inclusion of a central braking system that secures all four 125mm diameter castors simultaneously, ensuring the bed remains stationary during treatments. The side rails are equipped with integrated angle indicators to help staff maintain precise clinical positioning for the backrest. Furthermore, the bed includes practical medical utility features such as four infusion holes for IV poles, four drainage hooks for fluid bags, and a clear acrylic head card for the easy display of patient information.
