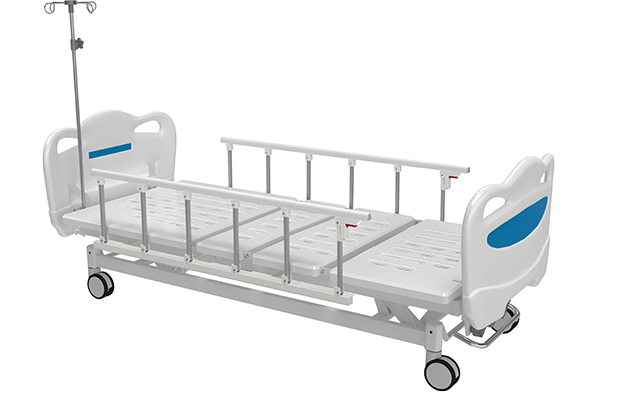

CONTOUR-MT Collapsible Side Rails Manual Bed

• Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating.
• The Bed platform consist of four foldable sections, stamping frame.
• Detachable ‘Smile face’ HDPE bed headboard and footboard.
• Collapsible side rails, made of premium cold rolled steel with electrostatic powder coating.

• Bed Platform: 1980x900mm
• Backrest: 0-75°±5°
• Legrest: 0-45°±5
• Height Adjustment: 470-680±10mm
• Brakes System: Central Brake/ Wheels Brake
• Sticker Color: Wood Grain/ Royal Blue
• Side Rails Collapsible Side Rails

• Backrest adjustment 0-75°±5°;Legrest adjustment 0-45°±5°; Height adjustment: 470-680±10mm.
• Clear acrylic head card for patient name display, Four infusion holes, four drainage hooks around the bed.
• Mechanical crank operation with overload protection.
• The screw handle is foldable under the bed footboard.
• Four 125mm diameter castors with central brake（RMC-SO171A2），four 125mm diameter castors with wheels brake（RMC-SO171B2）.
• The four corners of the bed body have orthopedic traction frame holes, which can be used for the clinical use of orthopedics when needed (Optional).
• The detachable bassinet is specially design for taking care of newborn baby, with 360°visibility (Optional).

Product Detail Display
