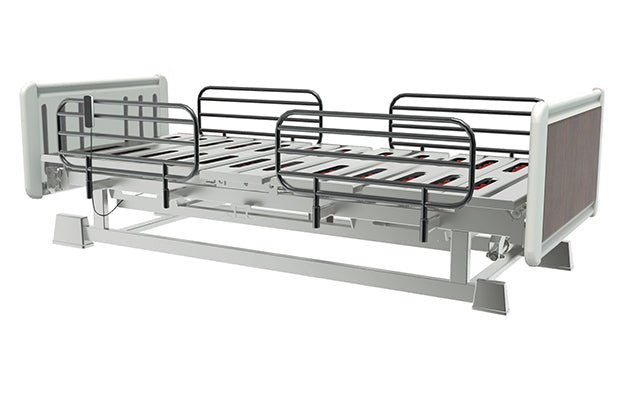

- Product Name: PRODIGY-HES (Two Functions Electric/Lateral Tilt)
- Model Number: RMCJJ213B
- Dimensions: L2130*W980*H500mm
- Backrest adjustment: 0-70°±5°
- Legrest adjustment: 0-40°±5°
- Material: Cold Rolled Steel, PP
Product Material
- Bed platform, structure and leg are all made of premium cold-rolled steel with electrostatic powder coating.
- The Bed platform consists of four foldable sections, a stamping frame.
- Detachable bed headboard and footboard, which are made of good-quality PP.
- Four-section plug-type side rails, made of premium cold rolled steel with electrostatic powder coating.
Product Parameters
- Bed Platform: 1980x900mm
- Backrest: 0-70°±5°
- Legrest: 0-40°±5
- Motor: 3 Motors
- Control Panel: Remote Control
Product Feature
- Backrest adjustment 0-70°±5°; Leg adjustment 0-40°±5°; Lateral tilt 0-30°.
- Three motors, patient remote is the standard configuration.
- Clear acrylic bedside card.
- Four infusion holes, two drainage hooks under the bed.
- Leg feet with cover.
Frequently Asked Questions
1. What are the primary adjustment functions of the PRODIGY-HES (RMCJJ213B) electric hospital bed?
The PRODIGY-HES (Model RMCJJ213B) is a multi-functional electric bed designed for superior patient positioning. It features three core adjustment functions:
- Backrest Adjustment: 0-70° (±5°) for sitting and respiratory comfort.
- Legrest Adjustment: 0-40° (±5°) to improve circulation and prevent sliding.
- Lateral Tilt: 0-30° tilt capability to assist in patient turning and pressure sore prevention.
2. What materials are used in the construction of the PRODIGY-HES lateral tilt bed?
Durability and hygiene are central to the RMCJJ213B design. The bed platform, main structure, and legs are manufactured from premium cold-rolled steel finished with an electrostatic powder coating for corrosion resistance. The detachable headboard and footboard are made from high-quality, easy-to-clean PP (Polypropylene), while the side rails are constructed from reinforced cold-rolled steel.
3. What are the dimensions and space requirements for the PRODIGY-HES electric bed?
The PRODIGY-HES is designed to accommodate standard medical environments while providing a spacious area for patient comfort.
- Overall External Dimensions: L2130mm x W980mm x H500mm.
- Bed Platform Size: 1980mm x 900mm.
- The bed features a four-section foldable platform and a stamping frame to ensure structural integrity and smooth movement during electronic adjustments.
4. How is the PRODIGY-HES (RMCJJ213B) controlled, and how many motors does it use?
The PRODIGY-HES is powered by a high-performance 3-motor system. These motors manage the backrest, legrest, and lateral tilt functions independently or in synchronization. For ease of use, the bed comes standard with a patient remote control, allowing either the caregiver or the patient to adjust the bed positions effortlessly.
5. Does the PRODIGY-HES hospital bed include medical accessory support?
Yes, the RMCJJ213B model is fully equipped for clinical utility. Standard features include:
- Four Infusion Holes: Located at the corners for IV pole placement.
- Two Drainage Hooks: Positioned under the bed for fluid management bags.
- Clear Acrylic Bedside Card: For easy patient identification and record-keeping.
- Plug-type Side Rails: Four-section steel rails for enhanced patient safety and fall prevention.
