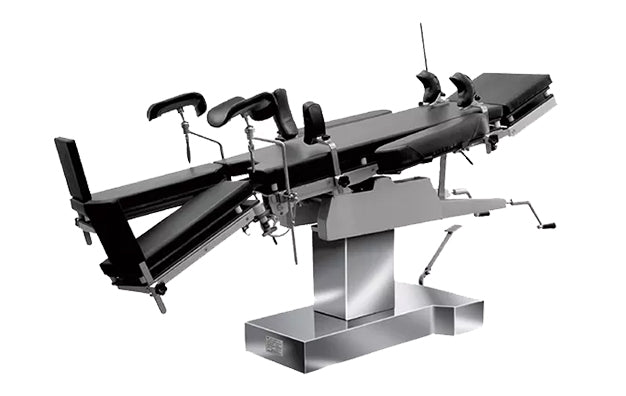

- Product Name: Operation Table
- Model Number: RMCJF112A
- Dimensions: L2010*W500*H760-1010mm
- Material: Stainless Steel
Product Features
It is all mechanically head operated, hydraulic pressure increase or decrease It adopts full stainless steel as its material with nice appearance and compact structure,tabletop can be X-raying available.
- 1. Lenth/width:2010mm/500mm
- 2. Elevation(up/down):760mm/1010mm
- 3. Trendelenburg 22°
- 4. Reverse Trendelenburg 22°
- 5. Lateral Tilt 20/°20°
- 6. Head rest(up/down) 60°/70°
- 7. Leg Plate(up/down) 85°/ 90°
- 8. Back Plate(up/down) 75°/15°
Other Details
- 1 Anaesthetic Screen
- 2 Shoulder Rest
- 2 Arm Support
- 2 Waist Suppport
- 2 Knee Crutch
- 2 Foot Plate
- 2 Long Slider
- 1PCS in a Box Meas:1400×750×1040mm
- G/N.W:290/247KG
Frequently Asked Questions
1. Is the RMCJF112A Operation Table compatible with X-ray imaging?
Answer: Yes, the RMCJF112A features an X-ray translucent tabletop, allowing for clear imaging during surgical procedures. Its compact stainless steel structure is designed to facilitate C-arm access and other radiologic requirements without compromising the table's stability or the patient's position.
2. What are the adjustment ranges for the RMCJF112A Hydraulic Surgical Table?
Answer: The RMCJF112A offers comprehensive positioning flexibility through a mechanical head-operated system and hydraulic lift. Key adjustments include:
- Height Elevation: 760mm to 1010mm.
- Trendelenburg / Reverse Trendelenburg: 22° in both directions.
- Lateral Tilt: 20° left and right.
- Back Plate: +75° (up) to -15° (down).
- Leg Plate: +85° (up) to -90° (down).
3. What material is used in the construction of the RMCJF112A Operating Table?
Answer: The RMCJF112A model is constructed from high-grade full stainless steel. This material choice ensures a "nice appearance" and high durability while making the surface easy to disinfect, meeting the strict hygiene standards required for modern surgical environments and operating theaters.
4. What accessories are included with the RMCJF112A Operation Table?
Answer: The RMCJF112A is a complete surgical solution that comes standard with a full set of accessories, including:
- 1 Anaesthetic Screen
- 2 Shoulder Rests & 2 Waist Supports
- 2 Arm Supports & 2 Knee Crutches
- 2 Foot Plates & 2 Long Sliders
These attachments allow for secure patient positioning across various surgical disciplines.
5. What are the shipping weight and dimensions for the RMCJF112A model?
Answer: For logistics and installation planning, the RMCJF112A is shipped in a single protective box. The Gross Weight (G.W.) is 290kg, while the Net Weight (N.W.) is 247kg. The shipping crate dimensions are 1400 × 750 × 1040mm, ensuring the unit remains compact and secure during international or domestic transport.
