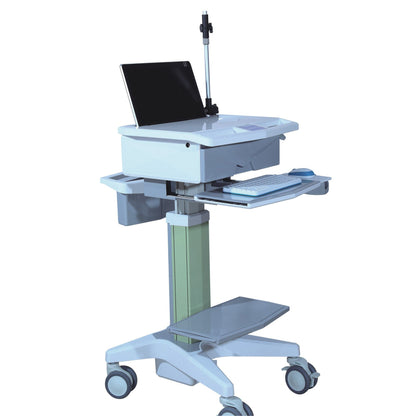

ECG Laptop Cart (MC-ECG)

What is the standard height adjustment range for a mobile ECG workstation?

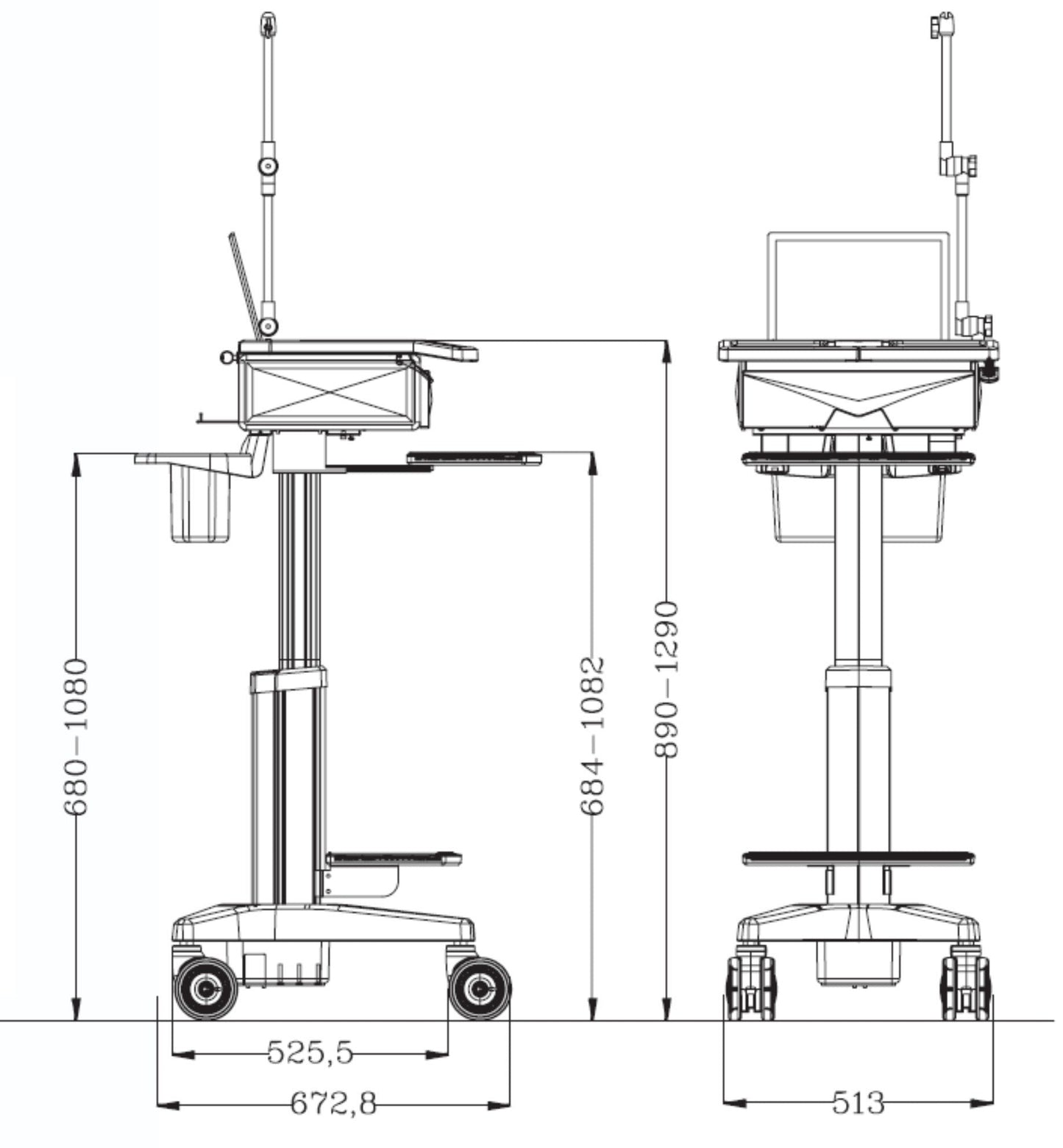

A professional mobile ECG workstation typically offers a versatile height adjustment range to accommodate both sitting and standing positions for healthcare providers. This specific model features a lifting range of 400mm, allowing the worksurface to move from a minimum height of 890mm to a maximum of 1290mm. This ergonomic flexibility ensures that clinicians of various heights can operate the mini ECG device comfortably, reducing physical strain during patient diagnostics in high-traffic medical environments.

How do medical carts handle cable management for ECG device adapters?

Efficient cable management is critical in clinical settings to maintain safety and organization. This medical cart utilizes a specialized back cover with a clamshell design specifically engineered to house power adapters and conceal wiring. By incorporating a built-in power line, the workstation eliminates cluttered external cables, preventing tripping hazards and making it easier to sanitize the equipment. This integrated system ensures that the mini ECG device remains powered while maintaining a clean, professional appearance in the exam room.

What are the dimensions and load capacity of a professional medical trolley worksurface?

The worksurface of a high-quality medical trolley is designed to provide ample space for diagnostic tools while remaining compact enough for mobility. This unit features a large, smooth ABS worksurface measuring 533mm in length and 455mm in width, which is ideal for supporting mini ECG units and patient documentation. To ensure structural integrity, the cart supports a lifting load of up to 15kg, providing a stable platform for essential medical equipment without compromising the smoothness of the height adjustment mechanism.

Does this mobile ECG cart include dedicated space for a keyboard and mouse?

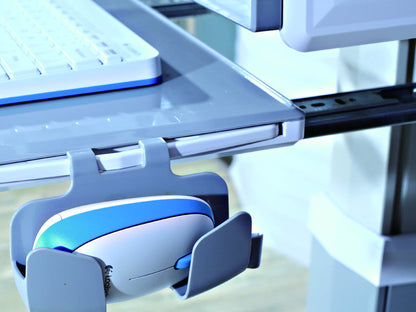

To facilitate seamless data entry during cardiac monitoring, this mobile workstation is equipped with a dedicated sliding keyboard and mouse tray. The keyboard tray measures 440mm by 256mm, while the mouse tray offers a surface area of 208mm by 200mm. These components are strategically positioned at an adjustable height between 684mm and 1084mm, allowing users to input patient information ergonomically while keeping the primary worksurface clear for the ECG device and wire sections arm.

What features make a medical trolley suitable for quiet hospital environments?

Hospital environments require equipment that minimizes noise disruption to ensure patient comfort. This ECG cart is outfitted with silent medical casters that allow for fluid, whisper-quiet movement across various floor types. The stability of the unit is further enhanced by its wheel-to-wheel base dimensions of 513mm by 672.8mm, which provides a low center of gravity. Additionally, the inclusion of a storage bin with a handle and a specialized arm for wire sections makes it a highly organized and quiet solution for point-of-care cardiac testing.
