- Product Name: COMFORT-MT (Three Functions Manual)
- Model Number: RMC-SO181A1/RMC-SO181B1
- Dimensions: L2260xW1065xH470-680±10mm
- Function: Three Functions
- Material: Cold Rolled Steel,HDPE
Product Material
- Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating.
- The Bed platform consist of four foldable sections, stamping frame.
- Detachable HDPE bed headboard and footboard.
- Four-section HDPE side rails operated by gas spring.
- The third side rails is made of premium quality cold rolled steel with electrostatic powder coating, which is rotated and lockable(Optional)
Product Parameters
- Bed Platform: 1980x900mm

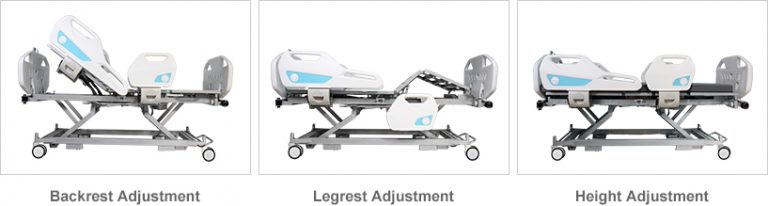

- Backrest: 0-75°±5°
- Legrest: 0-45°±5°
- Height Adjustment: 470-680±10mm
- Brakes System: Central Brake\ Wheels Brake
- Sticker Color: Wood Grain\ Royal Blue

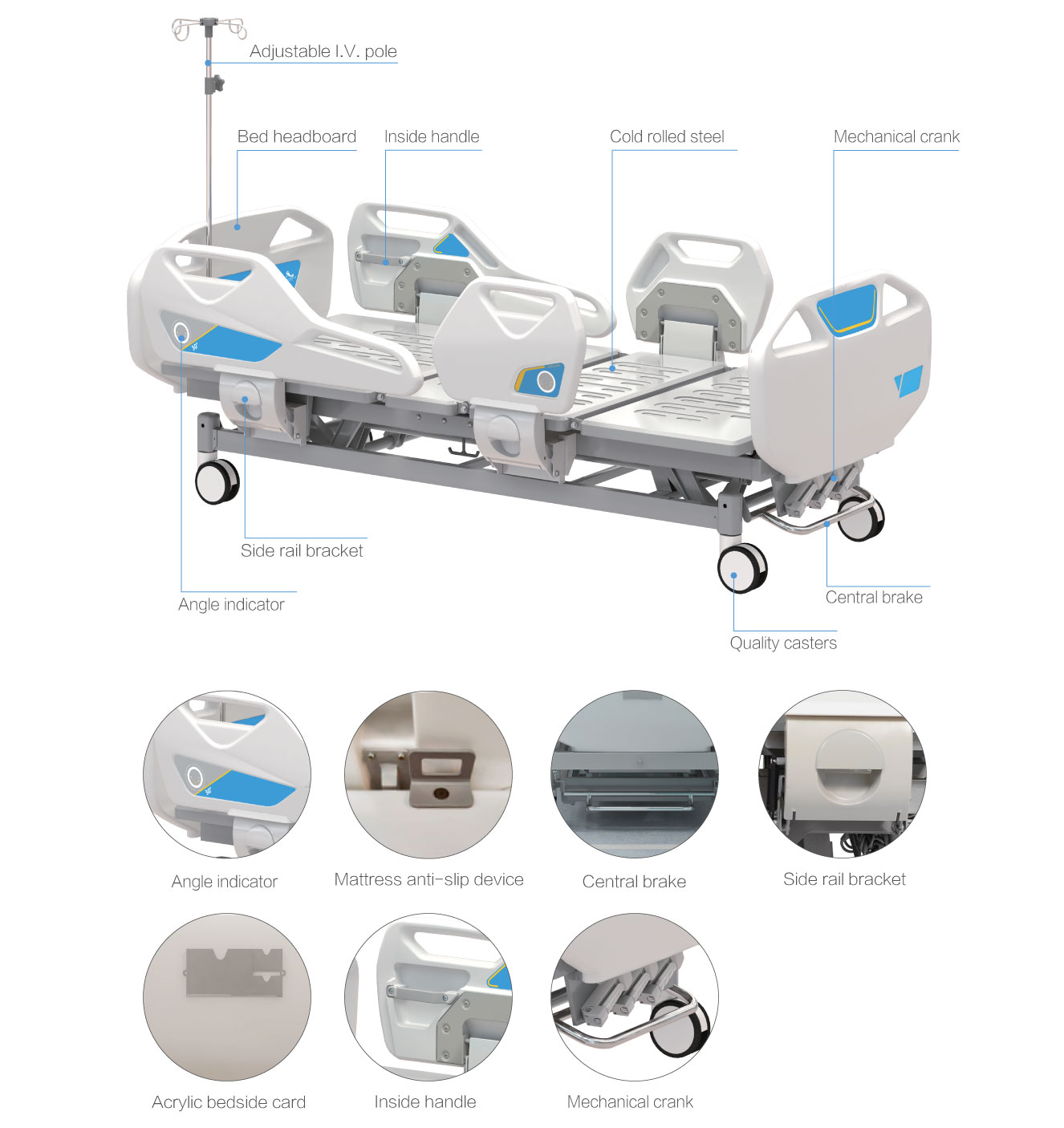

Product Feature
- Backrest 0-75°±5°, Leg rest 0-45°±5°, Height adjustment: 450-750±10mm.
- Angle indicators are on the both side of backrest side rails.
- Bedside card for patient name display, Four infusion holes, four drainage hooks around the bed.
- Mechanical crank operation with overload protection.
- The screw handle is foldable under the bed footboard.
- Four 125mm diameter castors with central brake (RMC-SO181A1) or wheels brake (RMC-SO181B1).
- The four corners of the bed body have orthopedic traction frame holes, which can be used for the clinical use of orthopedics when needed (Optional).
Frequently Asked Questions
What specific adjustments can be made with the COMFORT-MT three-function manual hospital bed?
The COMFORT-MT manual bed is engineered with three primary mechanical functions designed to optimize patient positioning and caregiver efficiency. Users can adjust the backrest from 0 to 75 degrees and the leg rest from 0 to 45 degrees to improve patient comfort and circulation. Additionally, the bed features a variable height adjustment range of 470mm to 680mm, allowing healthcare providers to set the platform at an ergonomic height for various medical procedures or to facilitate safer patient transfers.
What materials are used in the construction of the RMC-SO181 series medical beds?
The RMC-SO181A1 and RMC-SO181B1 models are constructed using high-quality materials to ensure long-term durability and hygiene in clinical settings. The bed platform, supporting structure, and legs are manufactured from premium cold rolled steel treated with an electrostatic powder coating for corrosion resistance. For added safety and ease of maintenance, the detachable headboard, footboard, and four-section side rails are made from high-density polyethylene (HDPE), which is known for its impact resistance and smooth, easy-to-sanitize surface.
How does the braking system differ between the RMC-SO181A1 and RMC-SO181B1 models?
The distinction between the RMC-SO181A1 and the RMC-SO181B1 lies primarily in the configuration of the castor locking mechanism. The RMC-SO181A1 model features a central braking system, which allows a caregiver to lock or unlock all four 125mm diameter castors simultaneously from a single point, offering rapid stabilization. The RMC-SO181B1 model utilizes individual wheel brakes, requiring each castor to be locked manually, which provides a cost-effective alternative for facilities that do not require frequent bed repositioning.
Can the COMFORT-MT manual bed be used for orthopedic traction treatments?
The COMFORT-MT is designed to be highly versatile and can be adapted for specialized clinical needs such as orthopedic care. The frame is equipped with dedicated orthopedic traction frame holes located at the four corners of the bed body. These optional holes allow for the seamless installation of traction equipment, making the RMC-SO181 series a suitable choice for hospitals that manage patients requiring musculoskeletal alignment or recovery from bone-related surgeries.
What safety features are integrated into the COMFORT-MT manual crank operation?
Safety is a core component of the COMFORT-MT design, featuring a mechanical crank system that includes built-in overload protection to prevent damage to the lifting mechanism. To ensure a clutter-free environment and prevent accidental injuries, the screw handles used for manual adjustments are designed to fold neatly under the bed footboard when not in use. Furthermore, the bed includes integrated angle indicators on the backrest side rails, allowing medical staff to verify the exact degree of elevation for patients with specific respiratory or recovery requirements.
