- Product Name: SURI-MS (Two Functions Manual)
- Model Number: RMC-SY181A1/RMC-SY181B1
- Dimensions: L2260xW1065xH500mm
- Function: Two Functions
- Material: Cold Rolled Steel,HDPE
Product Material
- Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating.
- The Bed platform consist of four foldable sections, stamping frame.
- Detachable HDPE bed headboard and footboard.
- Four-section HDPE side rails operated by gas spring.
- The third side rails is made of premium quality cold rolled steel with electrostatic powder coating, which is rotated and lockable(Optional)
Product Parameters
- Bed Platform: 1980x900mm
- Backrest: 0-75°±5°
- Legrest: 0-45°±5
- Brakes System: Central Brake\ Wheels Brake
- Sticker Color: Wood Grain\ Royal Blue
Product Feature

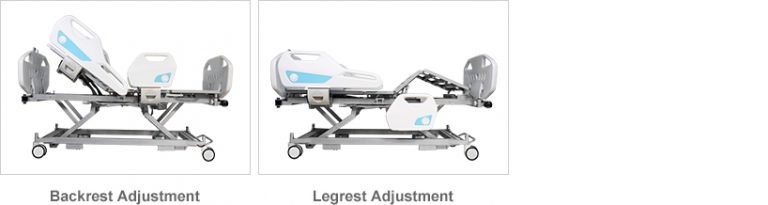

- Backrest 0-75°±5°, Leg rest 0-45°±5°.
- Angle indicators are on the both side of backrest side rails.
- Bedside card for patient name display, Four infusion holes, four drainage hooks around the bed.
- Mechanical crank operation with overload protection.
- The screw handle is foldable under the bed footboard.
- Four 125mm diameter castors with central brake (RMC-SO181A1) or wheels brake (RMC-SO181B1).
- The four corners of the bed body have orthopedic traction frame holes, which can be used for the clinical use of orthopedics when needed (Optional).
Frequently Asked Questions
What are the specific functions and adjustment ranges of the SURI-MS manual hospital bed?
The SURI-MS manual hospital bed is engineered as a two-function medical bed, which means it allows for the manual adjustment of both the upper and lower body sections. Specifically, the backrest can be adjusted from an angle of 0 to 75 degrees, while the leg rest can be moved from 0 to 45 degrees to enhance patient comfort and circulation. These adjustments are performed using a mechanical crank system that features built-in overload protection and a foldable screw handle that stays tucked away under the footboard when not in use.
What are the dimensions and platform size of the RMC-SY181A1 and RMC-SY181B1 models?
Both the RMC-SY181A1 and RMC-SY181B1 models share the same footprint, featuring an overall external dimension of L2260mm by W1065mm by H500mm. The interior bed platform, which consists of four foldable sections made of stamped cold-rolled steel, measures 1980mm by 900mm. This size is designed to provide ample space for patient movement while ensuring the bed fits comfortably within standard hospital rooms or home care environments.
What materials are used in the construction of the SURI-MS two-function hospital bed?
The SURI-MS hospital bed is constructed using a combination of high-strength metals and medical-grade plastics for maximum durability and hygiene. The main bed platform, structural frame, and legs are all manufactured from premium cold-rolled steel and finished with an electrostatic powder coating to prevent corrosion. For patient safety and ease of cleaning, the bed features detachable HDPE (high-density polyethylene) head and footboards, as well as four-section HDPE side rails that are smoothly operated by a gas spring mechanism.
What is the difference between the RMC-SY181A1 and RMC-SY181B1 braking systems?
The primary difference between the two models lies in their mobility and locking mechanisms. The RMC-SY181A1 model is equipped with a central braking system that allows a caregiver to lock or unlock all four 125mm diameter castors simultaneously from a single point. Conversely, the RMC-SY181B1 model features individual wheel brakes, where each castor is locked independently. Both systems utilize high-quality 125mm wheels to ensure smooth transport and stable positioning within a clinical setting.
Can the SURI-MS manual bed be used for orthopedic patients requiring traction?
Yes, the SURI-MS manual hospital bed is designed to be versatile enough for specialized medical departments, including orthopedics. The four corners of the bed frame are pre-drilled with orthopedic traction frame holes, allowing for the optional installation of traction equipment when needed for clinical use. Additionally, the bed includes integrated angle indicators on the backrest side rails and four drainage hooks, making it a highly functional choice for patients recovering from complex surgeries or bone injuries.
Product Introduction

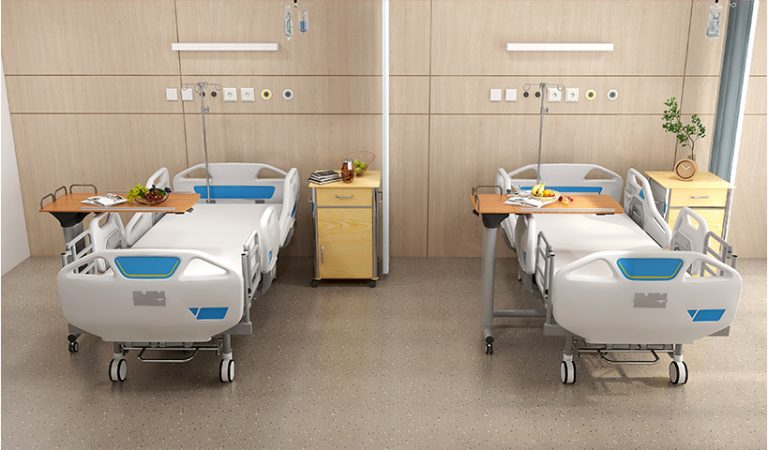

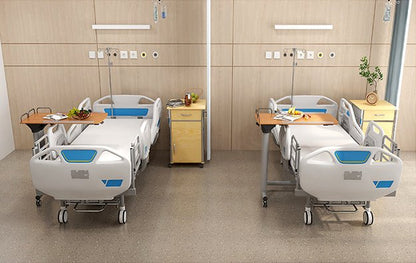

Product Display
RMC-SY181A1
RMC-SY181B1

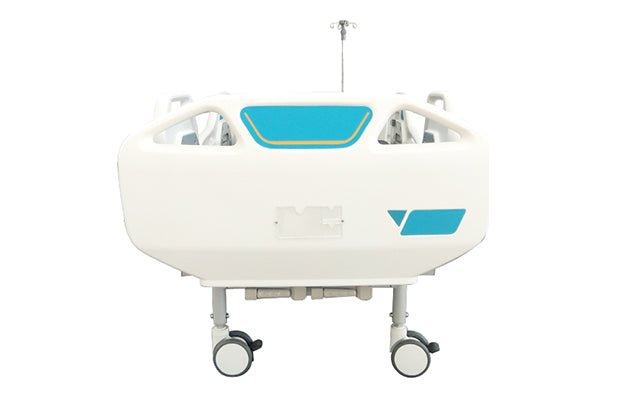

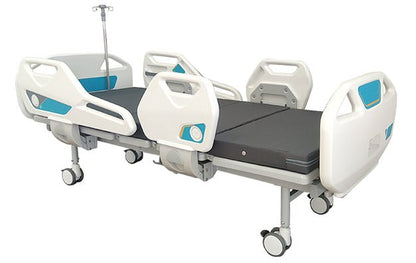

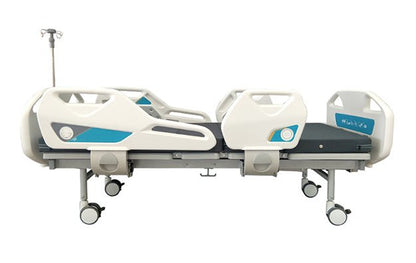

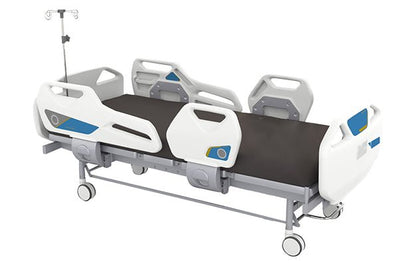

Product Detail Display
