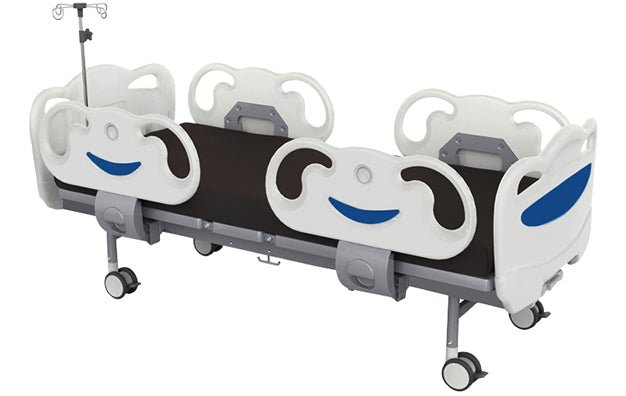

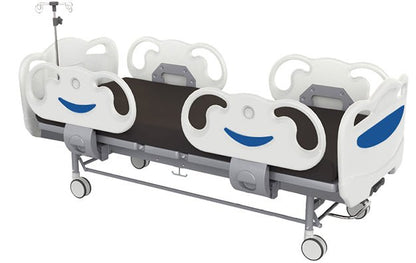

CONTOUR-MS Two Functions Manual Bed

CONTOUR-MS Two Functions Manual Bed

Regular price Rs. 500,000.00
Regular price Sale price Rs. 500,000.00
Sale Sold out
  • Product Name: CONTOUR-MS (Two Functions Manual)
  • Model Number: RMC-SY171A1/RMC-SY171B1
  • Dimensions: L2250xW1065xH500mm
  • Function: Two Functions
  • Material: Cold Rolled Steel, HDPE

Product Material

  • Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating.
  • The Bed platform consist of four foldable sections, stamping frame.
  • Detachable ‘Smile face’ HDPE bed headboard and footboard.
  • Four-section ‘Smile face’ HDPE side rails operated by gas spring.

Product Parameters

  • Bed Platform: 1980x900mm
  • Backrest: 0-75°±5°
  • Legrest: 0-45°±5
  • Brakes System: Central Brake/ Wheels Brake
  • Sticker Color: Wood Grain/ Royal Blue
  • Side Rails: ABS Side Rails

Product Feature

  • Backrest adjustment 0-75°±5°;Legrest adjustment 0-45°±5°.
  • Angle indicators on backrest side rails.
  • Clear acrylic head card for patient name display, Four infusion holes, four drainage hooks around the bed.
  • Mechanical crank operation with overload protection.
  • The screw handle is foldable under the bed footboard.
  • Four 125mm diameter castors with central brake(RMC-SY171A1), four 125mm diameter castors with wheels brake(RMC-SY171B1).
  • The four corners of the bed body have orthopedic traction frame holes, which can be used for the clinical use of orthopedics when needed (Optional).
  • The detachable bassinet is specially design for taking care of newborn baby, with 360°visibility (Optional).

Product Introduction

Product Detail Display
